For the beam shown, it carries a series of concentrated loads
moving from left to right. Using influence lines for the beams
compute the following:
a) max ordinate of the influence line to obtain the max positive
moment at point B.
b) position of point 1 (145kN) from point A to produce maximum
positive moment at B.
c) Maximum positive moment at B due to the series of
concentrated loads.

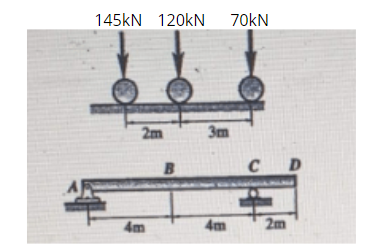

For The Beam Shown It Carries A Series Of Concentrated Loads Moving From Left To Right Using Influence Lines For The B 1 (116.38 KiB) Viewed 40 times
145kN 120kN 70kN 2m За B B с Am 2m
