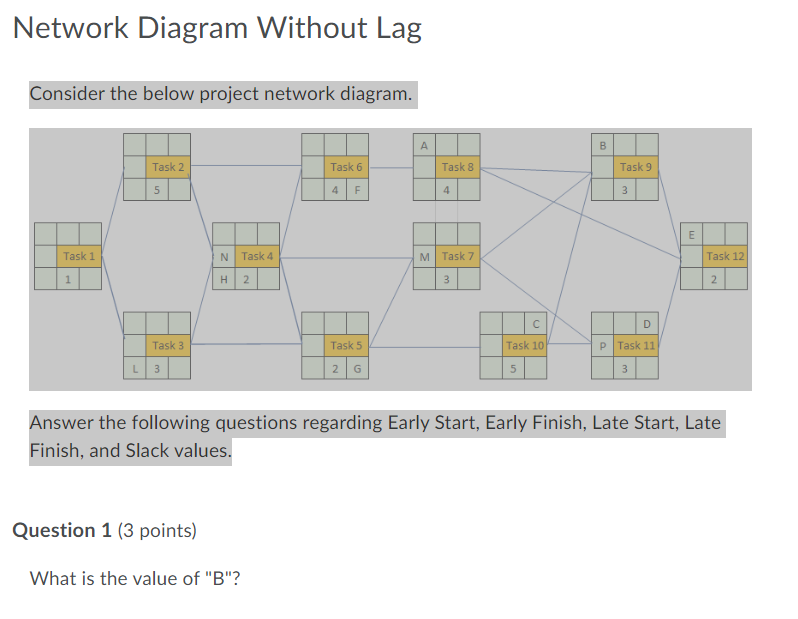

Network Diagram Without Lag Consider the below project network diagram. A B Task 2 Task 6 Task 8 Task 9 5 4. F 4 3 E Task 1 N Task 4 MTask 7 Task 12 1 H 2 3 2 С D Task 3 Task 5 Task 10 P Task 11 L 3 2 G 5 3 Answer the following questions regarding Early Start, Early Finish, Late Start, Late Finish, and Slack values. Question 1 (3 points) What is the value of "B"?
What is the value of "B"? 021 017 18 19 O 16
What is the value of "C"? 021 20 15 O 13 O 11
Which of the following tasks are on the critical path. Select as many as needed. Task 11 Task 2 Task 8 Task 12 Task 10 Task 1 Task 6 Task 9 Task 7
What is the value of "A"? 16 10 14 12 13
