For the cantilever beam loaded as shown in Figure 2 (Assume El constant): Calculate deflections and rotations at points

Post by answerhappygod »

For The Cantilever Beam Loaded As Shown In Figure 2 Assume El Constant Calculate Deflections And Rotations At Points 1
For The Cantilever Beam Loaded As Shown In Figure 2 Assume El Constant Calculate Deflections And Rotations At Points 1 (66.66 KiB) Viewed 45 times

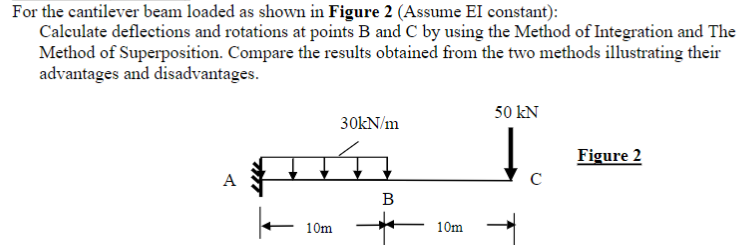

For the cantilever beam loaded as shown in Figure 2 (Assume El constant): Calculate deflections and rotations at points B and C by using the Method of Integration and The Method of Superposition. Compare the results obtained from the two methods illustrating their advantages and disadvantages. 50 kN 30kN/m Figure 2 A с B 10m 10m
