12 in 112.5 in. 2 No. 9 Bars Determine the nominal capacity (Mn) as well as the design moment capacity (Mr) for the doub

[answerhappygod]

12 In 112 5 In 2 No 9 Bars Determine The Nominal Capacity Mn As Well As The Design Moment Capacity Mr For The Doub 1 (33.93 KiB) Viewed 36 times

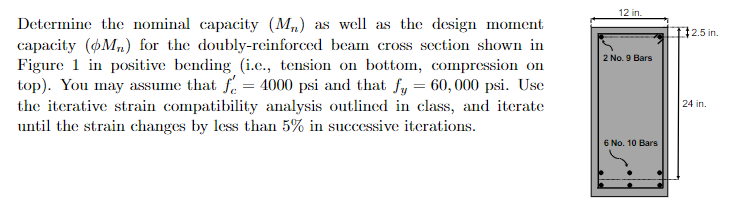

12 in 112.5 in. 2 No. 9 Bars Determine the nominal capacity (Mn) as well as the design moment capacity (Mr) for the doubly-reinforced beam cross section shown in Figure 1 in positive bending (i.e., tension on bottom, compression on top). You may assume that f = 4000 psi and that fy = 60,000 psi. Use the iterative strain compatibility analysis outlined in class, and iterate until the strain changes by less than 5% in successive iterations. 24 in. 6 No. 10 Bars
