Three boards are nailed together to form a beam shown, which is subjected to a vertical shear. Knowing that the spacing

Post by answerhappygod »

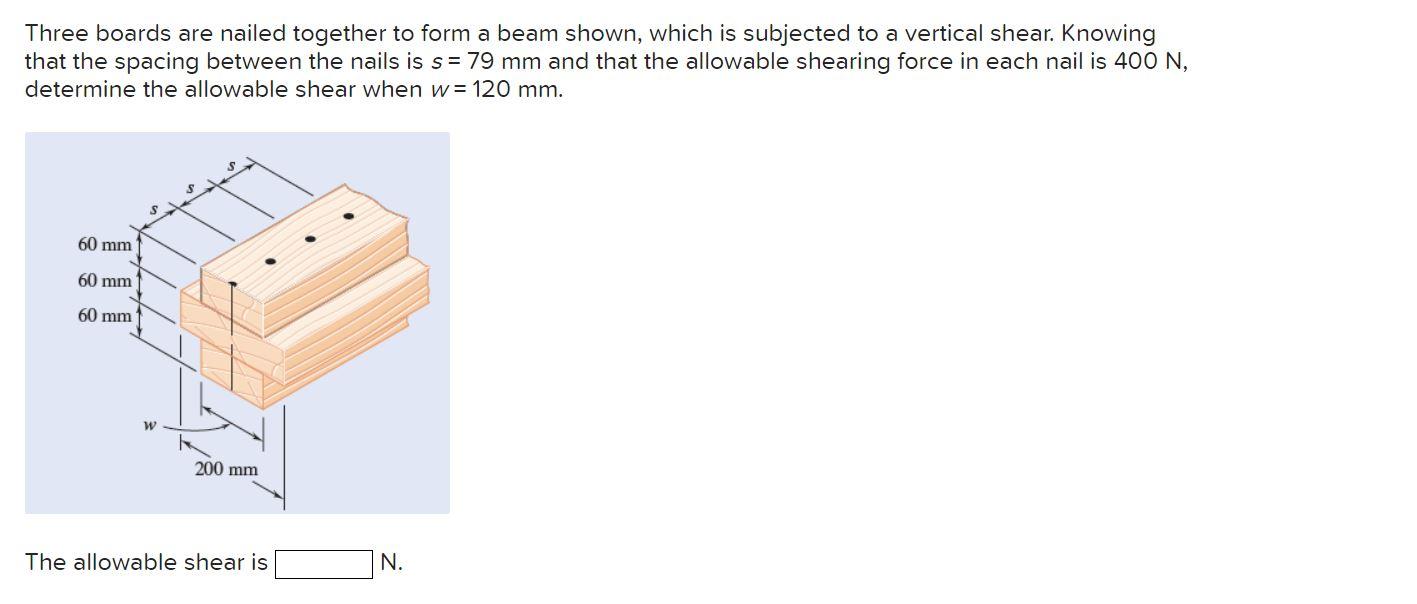

Three Boards Are Nailed Together To Form A Beam Shown Which Is Subjected To A Vertical Shear Knowing That The Spacing 1
Three Boards Are Nailed Together To Form A Beam Shown Which Is Subjected To A Vertical Shear Knowing That The Spacing 1 (57.88 KiB) Viewed 43 times
Three boards are nailed together to form a beam shown, which is subjected to a vertical shear. Knowing that the spacing between the nails is s = 79 mm and that the allowable shearing force in each nail is 400 N, determine the allowable shear when w= 120 mm. 60 mm 60 mm 60 mm w 200 mm The allowable shear is N.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
