Pls solve this problem as quickly as possible. Thanks in
advance.

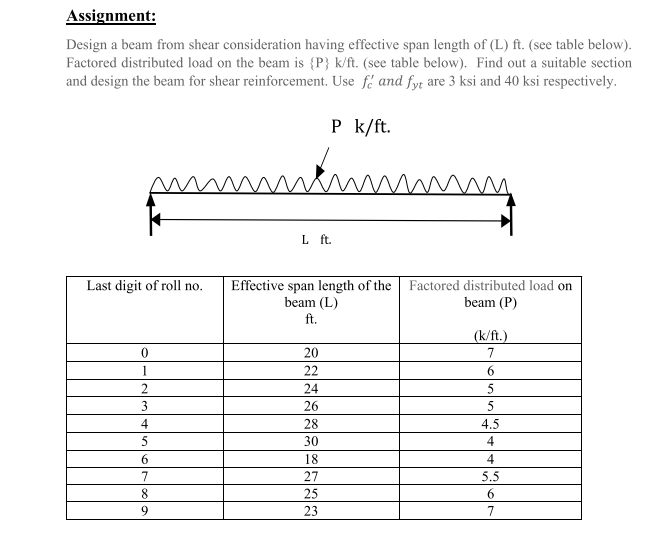

Assignment: Design a beam from shear consideration having effective span length of (L) ft. (see table below). Factored distributed load on the beam is {P} k/ft. (see table below). Find out a suitable section and design the beam for shear reinforcement. Use f' and fyt are 3 ksi and 40 ksi respectively. Pk/ft. un Mahanand L ft. Last digit of roll no. 0 1 2 3 4 5 6 7 8 9 Effective span length of the Factored distributed load on beam (L) beam (P) ft. (k/ft.) 20 7 22 6 24 5 26 5 28 4.5 30 4 18 4 27 5.5 25 6 23 7 ISIS
