Table 1. Experimental data. Tube Side (Hot) Shell Side (Cold) Tout (°C) V (mL) Tin (°C) Tout (°C) V (mL) 72.1 650.6ml 25

[answerhappygod]

Table 1 Experimental Data Tube Side Hot Shell Side Cold Tout C V Ml Tin C Tout C V Ml 72 1 650 6ml 25 1 (264.88 KiB) Viewed 17 times

experiment 1&2 data

Table 1 Experimental Data Tube Side Hot Shell Side Cold Tout C V Ml Tin C Tout C V Ml 72 1 650 6ml 25 2 (307.76 KiB) Viewed 17 times

#1

Table 1 Experimental Data Tube Side Hot Shell Side Cold Tout C V Ml Tin C Tout C V Ml 72 1 650 6ml 25 3 (275.66 KiB) Viewed 17 times

#3

Table 1 Experimental Data Tube Side Hot Shell Side Cold Tout C V Ml Tin C Tout C V Ml 72 1 650 6ml 25 4 (258.71 KiB) Viewed 17 times

#4
please solve #1 #3 and #4

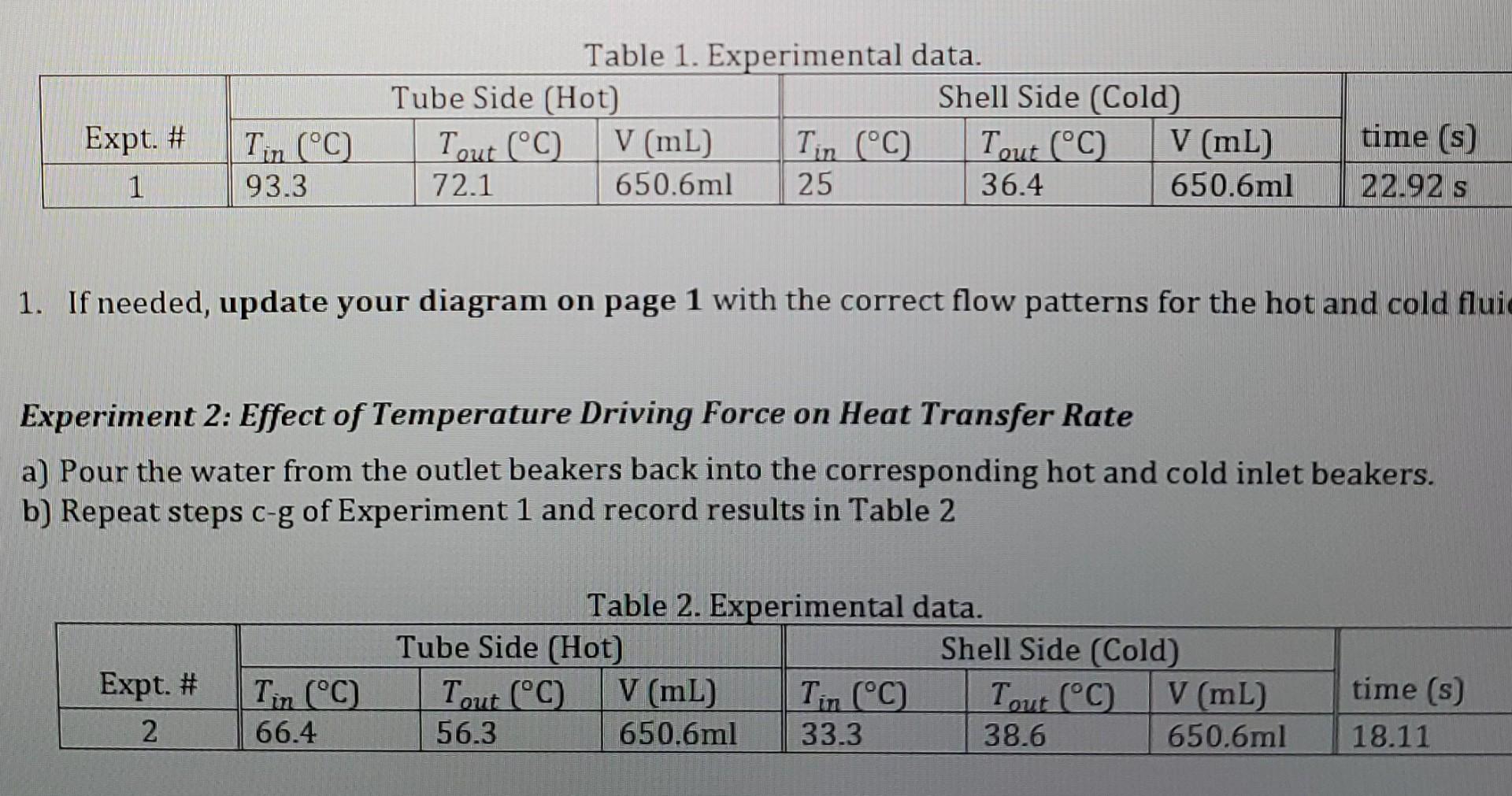

Table 1. Experimental data. Tube Side (Hot) Shell Side (Cold) Tout (°C) V (mL) Tin (°C) Tout (°C) V (mL) 72.1 650.6ml 25 36.4 650.6ml Expt. # time (s) Tin (°C) 93.3 1 22.92 s 1. If needed, update your diagram on page 1 with the correct flow patterns for the hot and cold flui Experiment 2: Effect of Temperature Driving Force on Heat Transfer Rate a) Pour the water from the outlet beakers back into the corresponding hot and cold inlet beakers. b) Repeat steps c-g of Experiment 1 and record results in Table 2 Table 2. Experimental data. Tube Side (Hot) Shell Side (Cold) Tout (°C) V (mL) Tin (°C) Tout (°C) V (mL) 56.3 650.6ml 33.3 38.6 650.6ml Expt. # 2 Tin (°C) 66.4 time (s) 18.11

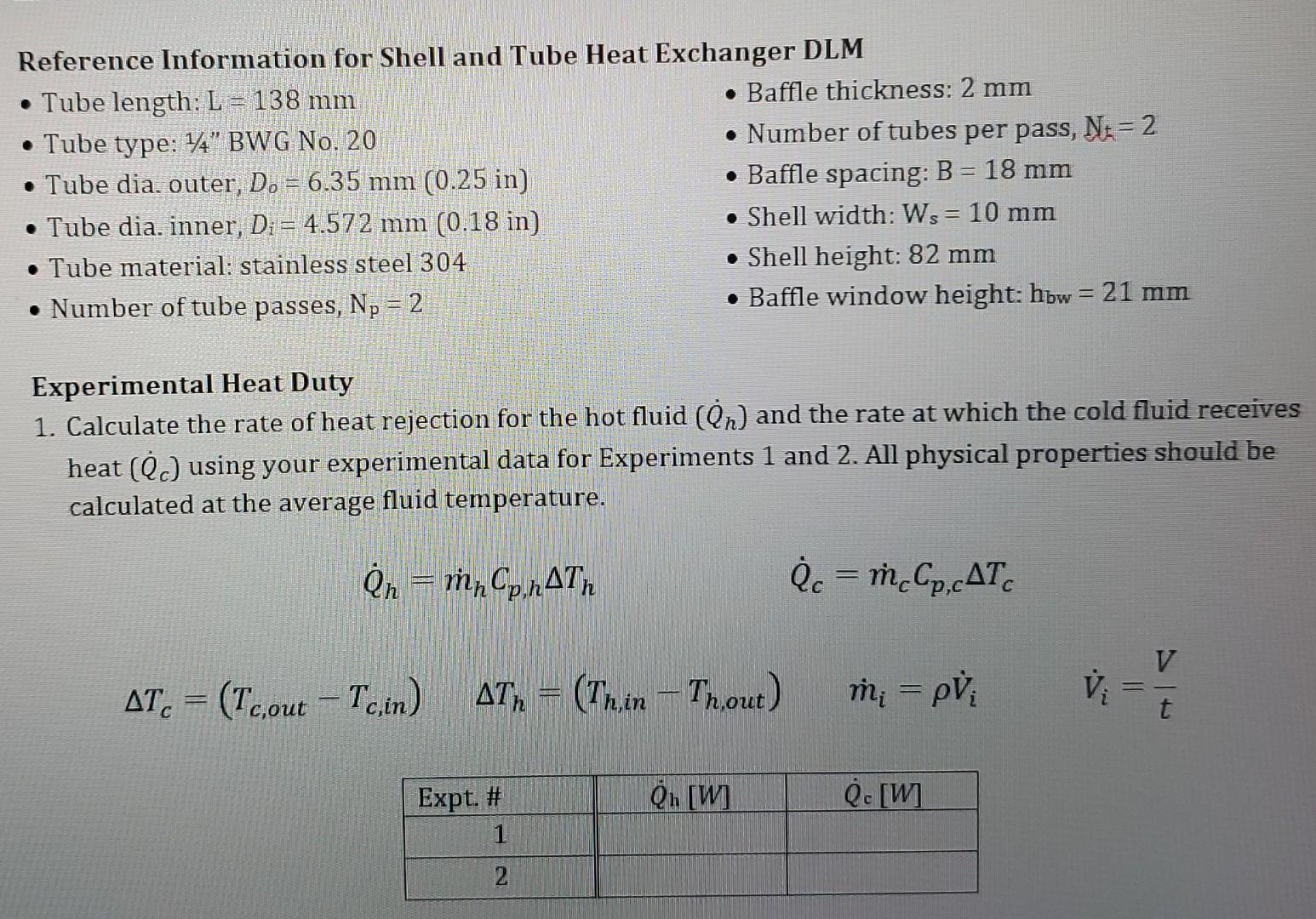

Reference Information for Shell and Tube Heat Exchanger DLM • Tube length: L = 138 mm • Baffle thickness: 2 mm • Tube type: 14" BWG No. 20 • Number of tubes per pass, Nt=2 • Tube dia, outer, Do = 6.35 mm (0.25 in) • Baffle spacing: B = 18 mm • Tube dia. inner, D; = 4.572 mm (0.18 in) • Shell width: Ws = 10 mm • Tube material: stainless steel 304 • Shell height: 82 mm • Number of tube passes, Np = 2 • Baffle window height: how = 21 mm Experimental Heat Duty 1. Calculate the rate of heat rejection for the hot fluid (en) and the rate at which the cold fluid receives heat () using your experimental data for Experiments 1 and 2. All physical properties should be calculated at the average fluid temperature. en = m, Cp, AT , On éc = mcCp.CAT AT= (Tc,out - Tein AT, = (Thin - Thout) ) ΔΤ( m; = pV; Vi = 1 t Expt. # Qu[W] Q. [W] 11 2

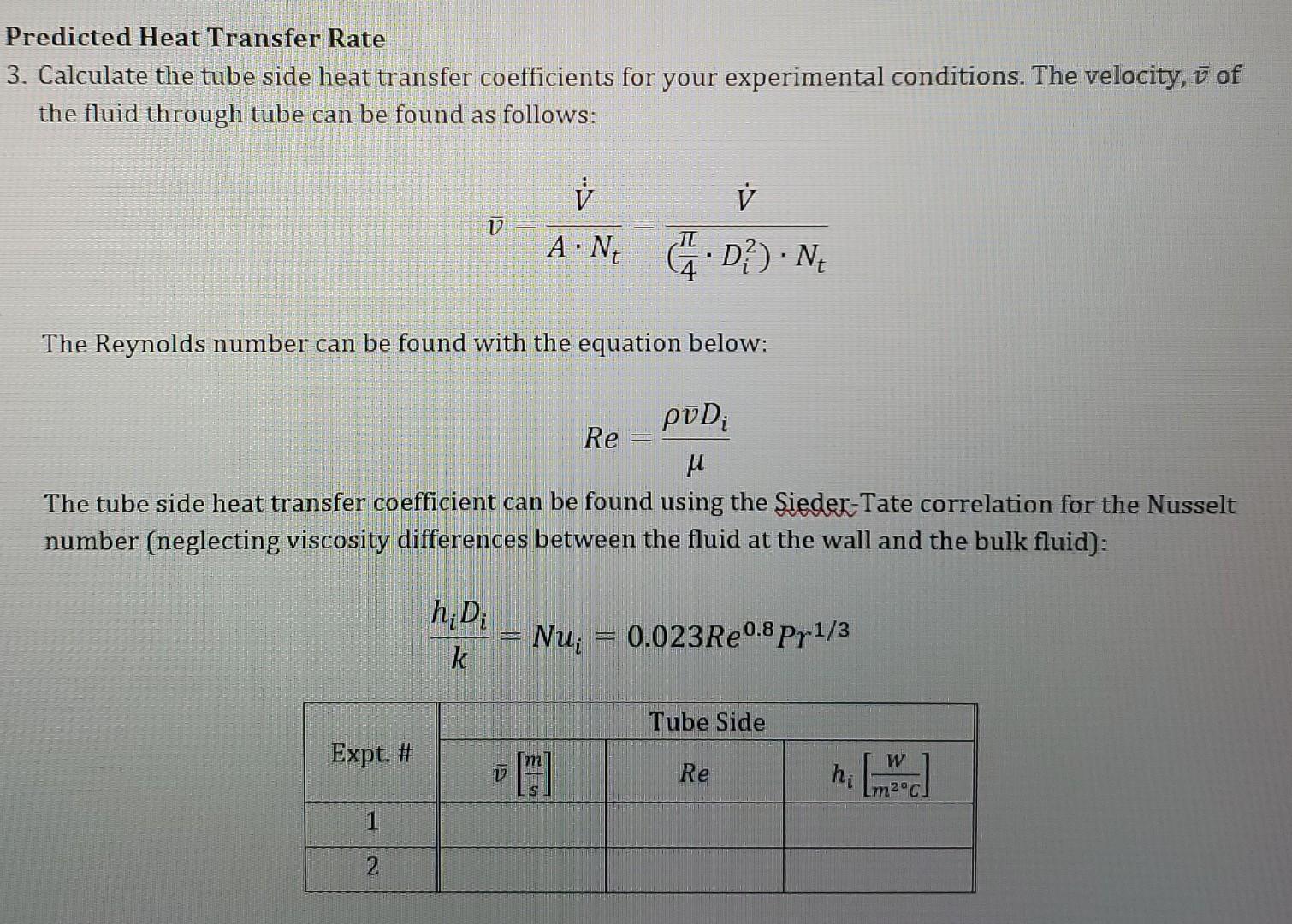

Predicted Heat Transfer Rate 3. Calculate the tube side heat transfer coefficients for your experimental conditions. The velocity, 7 of the fluid through tube can be found as follows: V V A:N, }. (17. D?). NE The Reynolds number can be found with the equation below: pūD, Re μ The tube side heat transfer coefficient can be found using the Sieder-Tate correlation for the Nusselt number (neglecting viscosity differences between the fluid at the wall and the bulk fluid): h, Di k POT Nu; A 0.023Re0.8 Pr1/3 Tube Side Expt. # Re hi W Lm2°C S 1 2

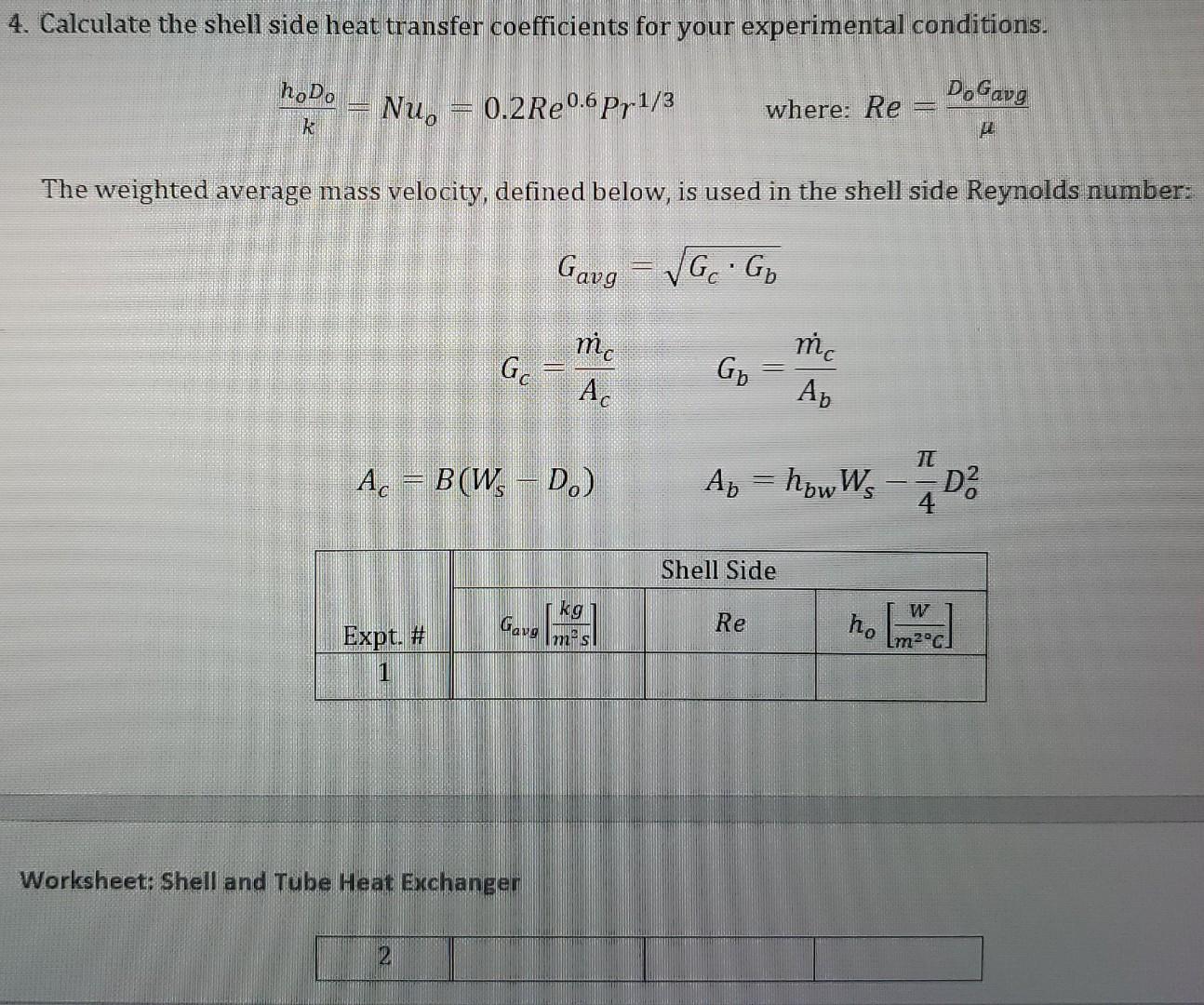

4. Calculate the shell side heat transfer coefficients for your experimental conditions. DoGarg hoDo k Nu, = 0.2 Re0.6 Pr1/3 where: Re LI The weighted average mass velocity, defined below, is used in the shell side Reynolds number: Garg = √Gc Go Gc mic Ac Gь mic А, I Ac = B(Ws - D.) Ab - how Ws - 3 = 4 Shell Side kg Gavg Re Expt. # ho W Lm2 222 SL 1 Worksheet: Shell and Tube Heat Exchanger 22
