For Problems 8.11 to 8.19, for the beams and loads given, select stirrup spacings if f = 4000 psi normal-weight concrete

[answerhappygod]

For Problems 8 11 To 8 19 For The Beams And Loads Given Select Stirrup Spacings If F 4000 Psi Normal Weight Concrete 1 (360.07 KiB) Viewed 43 times

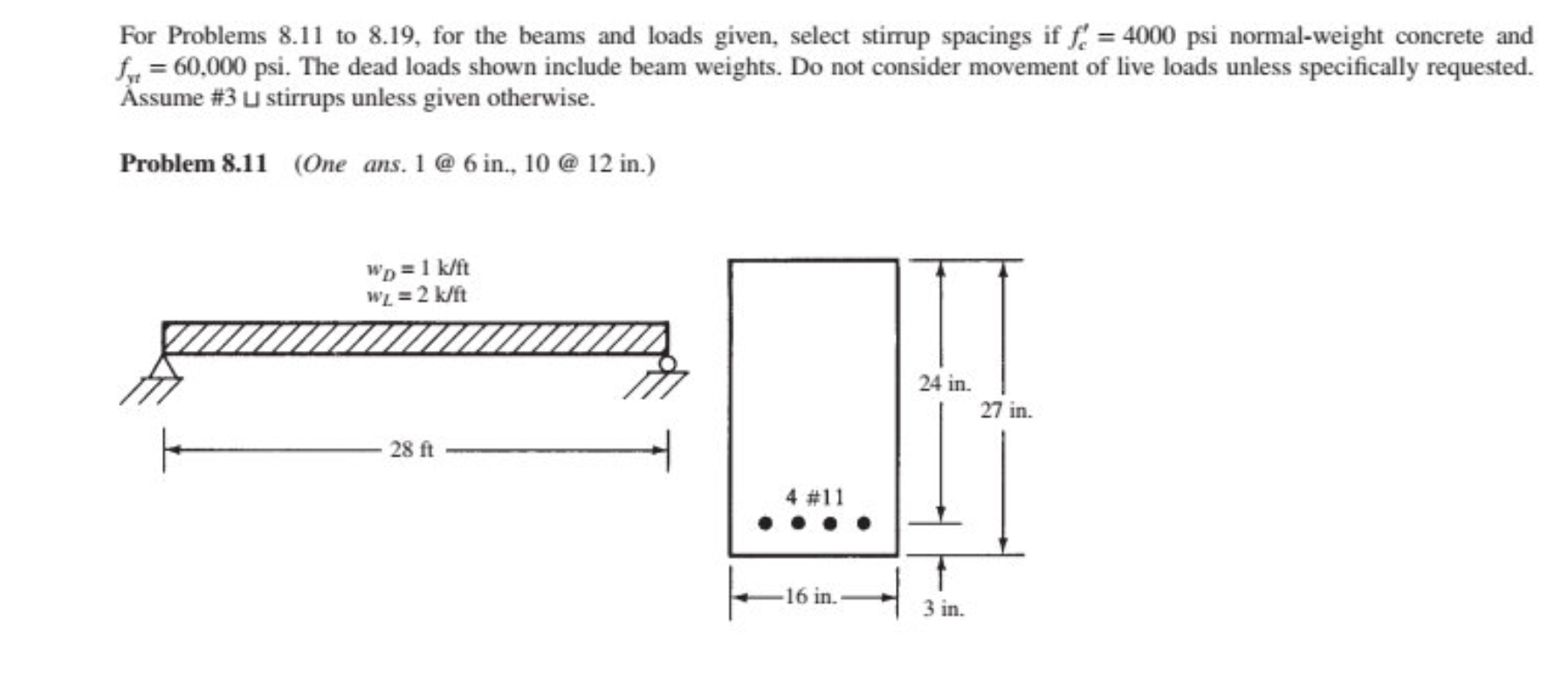

For Problems 8.11 to 8.19, for the beams and loads given, select stirrup spacings if f = 4000 psi normal-weight concrete and fy = 60,000 psi. The dead loads shown include beam weights. Do not consider movement of live loads unless specifically requested. Assume #3 U stirrups unless given otherwise. Problem 8.11 (One ans. 1 @ 6 in., 10 @ 12 in.) wp= 1 k/ft wL = 2 kft 24 in. 27 in. 28 ft 4 #11 16 in. 3 in.
