Q2: Depth (m) N values 0 11 N Estimate the allowable load capacity of a 0.75m diameter concrete pile, embedded 17 m in a

[answerhappygod]

Q2 Depth M N Values 0 11 N Estimate The Allowable Load Capacity Of A 0 75m Diameter Concrete Pile Embedded 17 M In A 1 (103.61 KiB) Viewed 18 times

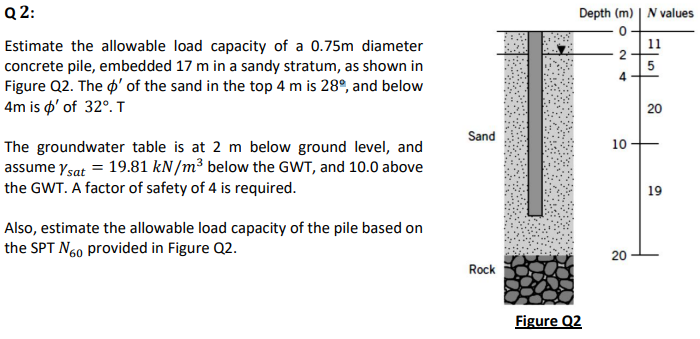

Q2: Depth (m) N values 0 11 N Estimate the allowable load capacity of a 0.75m diameter concrete pile, embedded 17 m in a sandy stratum, as shown in Figure Q2. The ' of the sand in the top 4 m is 28°, and below 4m is ' of 32°.T 4 20 Sand 10 The groundwater table is at 2 m below ground level, and assume Ysat = 19.81 kN/m3 below the GWT, and 10.0 above the GWT. A factor of safety of 4 is required. 19 Also, estimate the allowable load capacity of the pile based on the SPT N60 provided in Figure Q2. 20 Rock Figure Q2
