"Can you please just explain to me why -4/5(8) is negative and
not positive. Can you do the same for Tx, 9, 3/5(8). I don't know
how to determine whether these values will be positive or
negative.
The gusset plate is subjected to the forces of three members.
Determine the tension force in member C and its angle for
equilibrium. The forces are concurrent at point O. take F =
8kN.
Can You Please Just Explain To Me Why 4 5 8 Is Negative And Not Positive Can You Do The Same For Tx 9 3 5 8 I Do 1 (89.72 KiB) Viewed 24 times

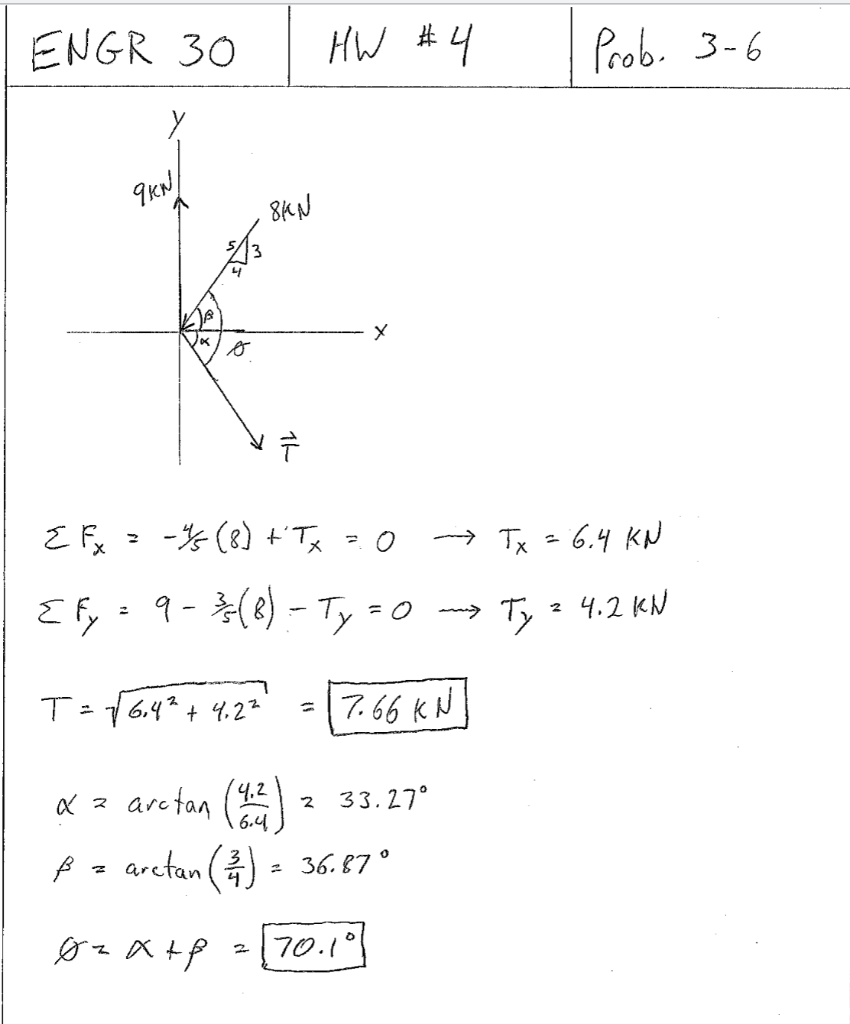

ENGR 30 HW #4 Prob. 3-6 у 9KN/ SKN х Ø Ĉ 구 E Fx -4 (8) + Tx o Tx = 6.4 KN {fy = 9-3(8) -- Ty = 0 m Ty 4.2 KN T-76,42 +4.22 7.66 kN a 2 4.2 6.4 2 33.270 arctan aretan (™) – 36.87° ß Øz atp 2170.101
