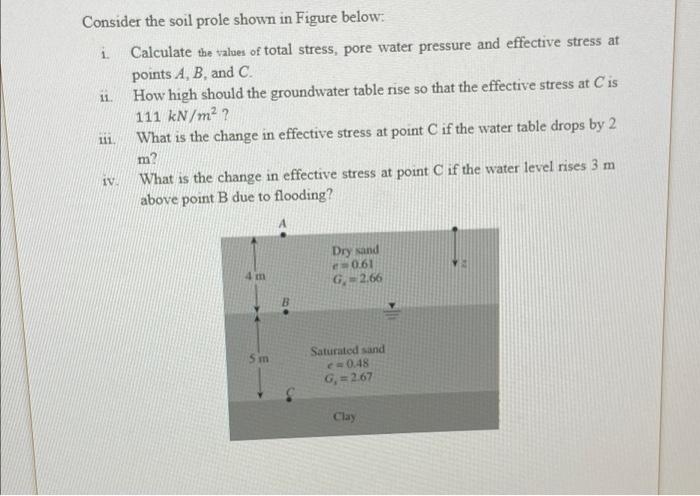

11 Consider the soil prole shown in Figure below: i Calculate the values of total stress, pore water pressure and effect

[answerhappygod]

11 Consider The Soil Prole Shown In Figure Below I Calculate The Values Of Total Stress Pore Water Pressure And Effect 1 (47.83 KiB) Viewed 30 times

11 Consider the soil prole shown in Figure below: i Calculate the values of total stress, pore water pressure and effective stress at points A, B, and C How high should the groundwater table rise so that the effective stress at Cis 111 kN/ m2 What is the change in effective stress at point C if the water table drops by 2 m? What is the change in effective stress at point C if the water level rises 3 m above point B due to flooding? 111. 1V Dry and 061 G.-2.66 4 m Saturated sand 0.48 G = 2.67 Clay
