A 1.875-in.-diameter solid shaft is subjected to an axial force of P = 460 lb, a horizontal shear force of V = 320 lb, a

Post by answerhappygod »

A 1 875 In Diameter Solid Shaft Is Subjected To An Axial Force Of P 460 Lb A Horizontal Shear Force Of V 320 Lb A 1
A 1 875 In Diameter Solid Shaft Is Subjected To An Axial Force Of P 460 Lb A Horizontal Shear Force Of V 320 Lb A 1 (248.79 KiB) Viewed 26 times

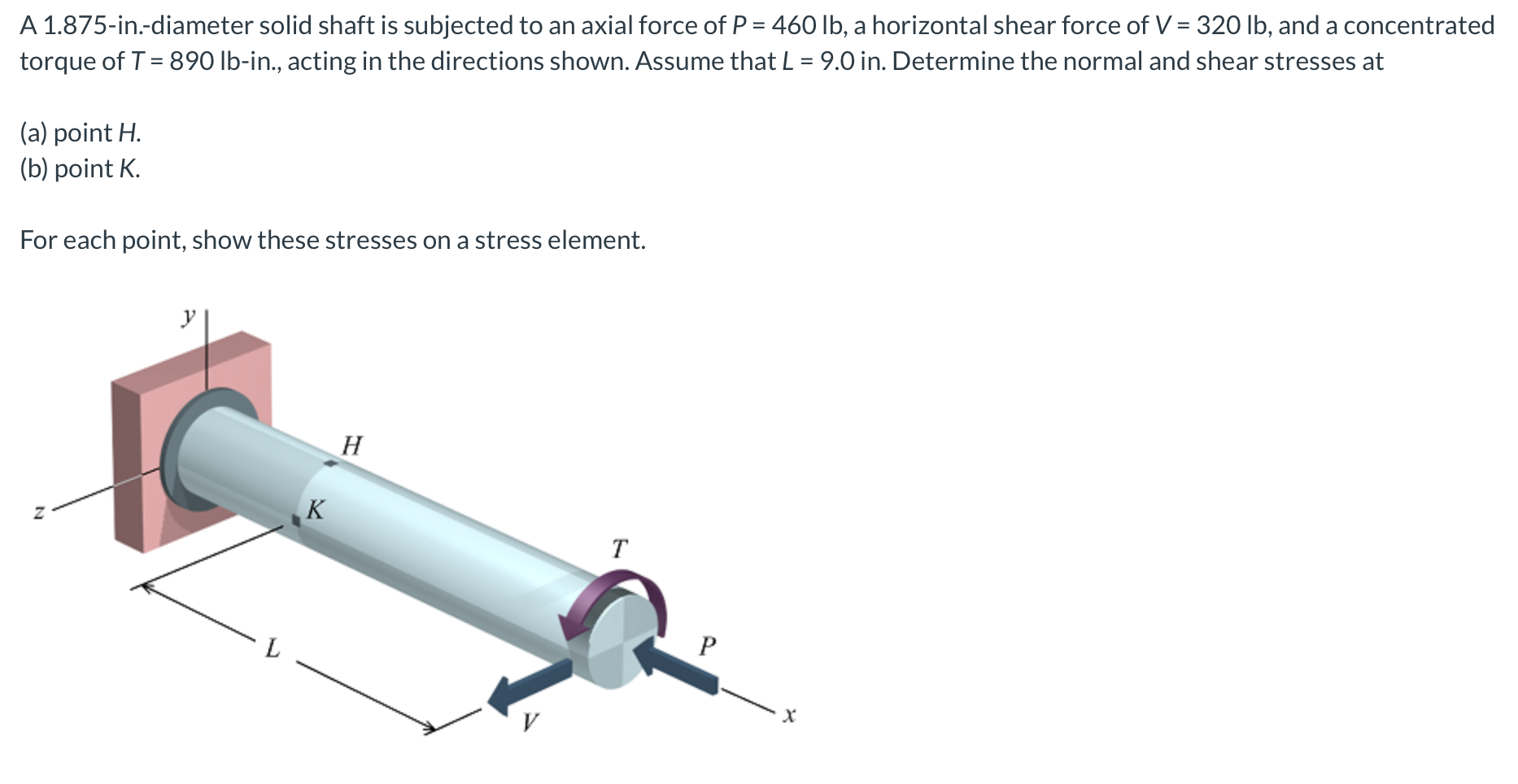

A 1.875-in.-diameter solid shaft is subjected to an axial force of P = 460 lb, a horizontal shear force of V = 320 lb, and a concentrated torque of T = 890 lb-in., acting in the directions shown. Assume that L = 9.0 in. Determine the normal and shear stresses at (a) point H. (b) point K. For each point, show these stresses on a stress element. H z K T P x
Answers: (a) point H: Ox= psi Oz= i psi Txz = psi (b) point K: Ox = i psi Oy = i psi Txy = psi
