Part A The joint is subjected to the force system shown in the figure below (Figure 1) where P1 = 260 lb and B = 460 lb.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Part A The joint is subjected to the force system shown in the figure below (Figure 1) where P1 = 260 lb and B = 460 lb.

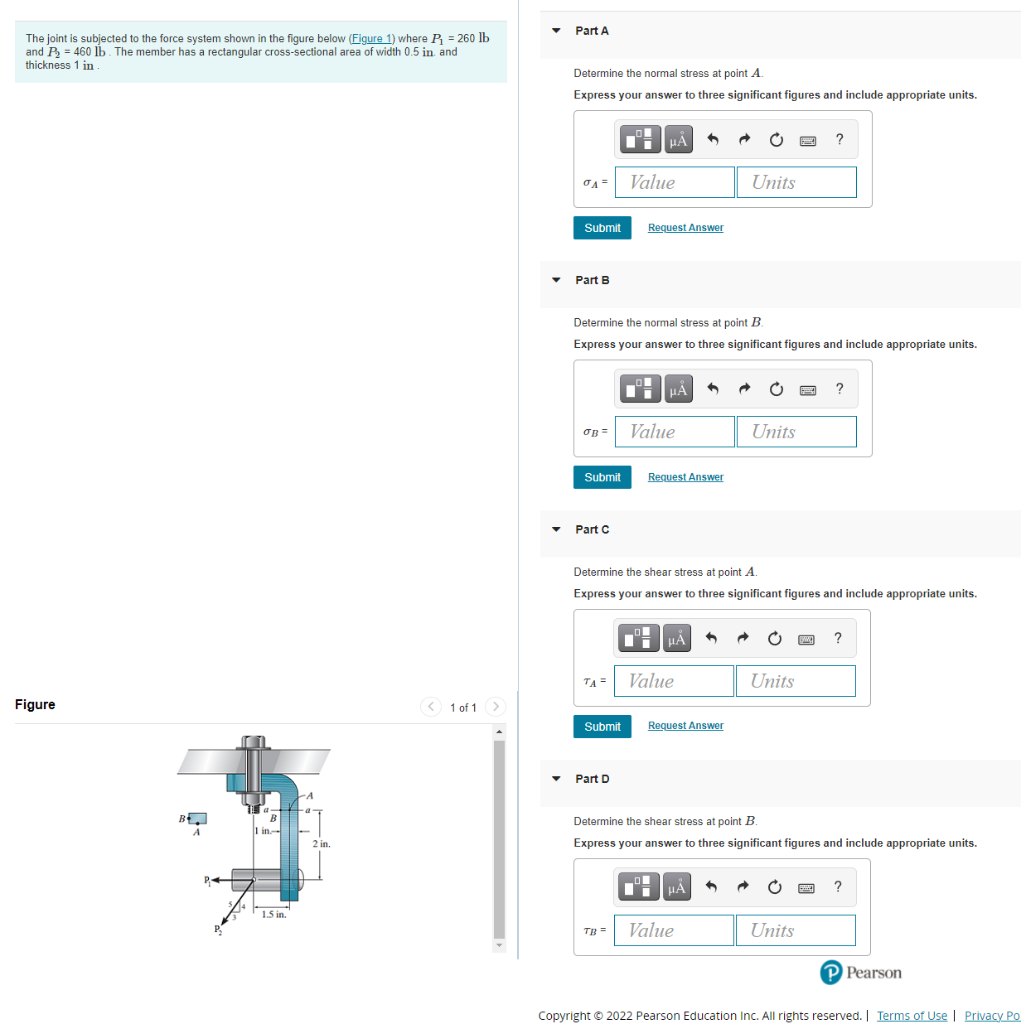

Part A The joint is subjected to the force system shown in the figure below (Figure 1) where P1 = 260 lb and B = 460 lb. The member has a rectangular cross-sectional area width 0.5 in and thickness 1 in Determine the normal stress at point A Express your answer to three significant figures and include appropriate units. НА ? OA Value Units Submit Request Answer Part B Determine the normal stress at point B Express your answer to three significant figures and include appropriate units. ВА ? OB Value Units Submit Request Answer Part Determine the shear stress at point A. Express your answer to three significant figures and include appropriate units. НА TA Value Units Figure < 1 of 1 Submit Request Answer Part D BE A Determine the shear stress at point B Express your answer to three significant figures and include appropriate units. HÅ 1.5 in. TB = Value Units P Pearson Copyright © 2022 Pearson Education Inc. All rights reserved. Terms of Use | Privacy Po
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
