The Simply Supported Inverted Tee Beam Shown Below Supports Two Concentrated Forces W 2w Thickness Of Web And Bottom F 1 (49.76 KiB) Viewed 18 times
f) Compute the corresponding maximum tensile and compressive
strains acting on the beam

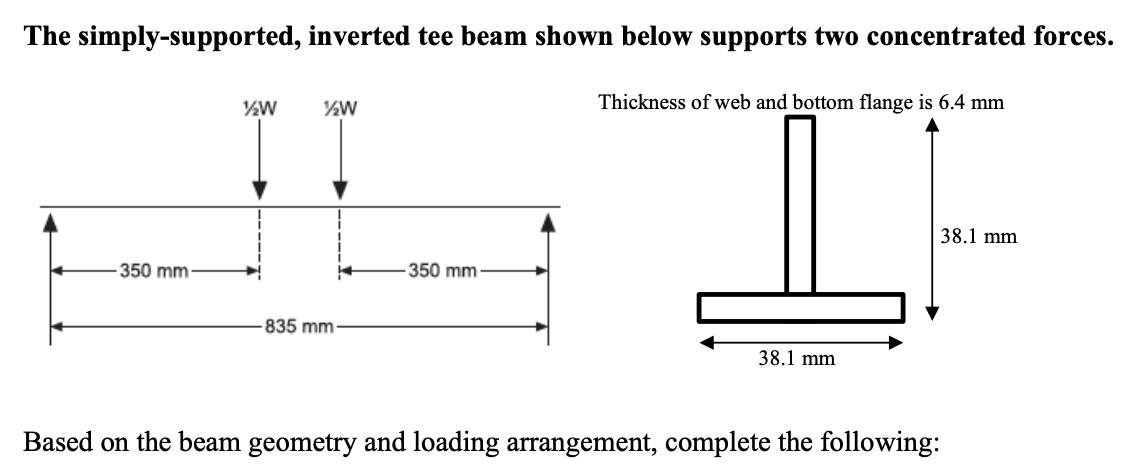

The simply-supported, inverted tee beam shown below supports two concentrated forces. W 2W Thickness of web and bottom flange is 6.4 mm 38.1 mm 350 mm -350 mm -835 mm 38.1 mm Based on the beam geometry and loading arrangement, complete the following:
