Analyse the structure shown in Figure using consistent deformation methods, then draw the Shear force and Bending moment

Post by answerhappygod »

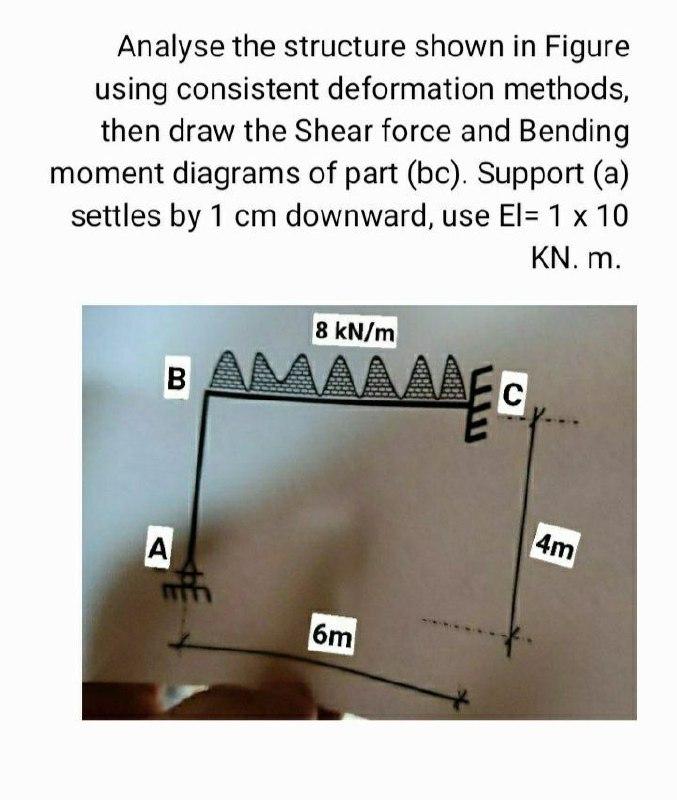

Analyse The Structure Shown In Figure Using Consistent Deformation Methods Then Draw The Shear Force And Bending Moment 1
Analyse The Structure Shown In Figure Using Consistent Deformation Methods Then Draw The Shear Force And Bending Moment 1 (63.01 KiB) Viewed 20 times
Analyse the structure shown in Figure using consistent deformation methods, then draw the Shear force and Bending moment diagrams of part (bc). Support (a) settles by 1 cm downward, use El= 1 x 10 KN. m. 8 kN/m BAMAAANEC с А. 4m 6m
