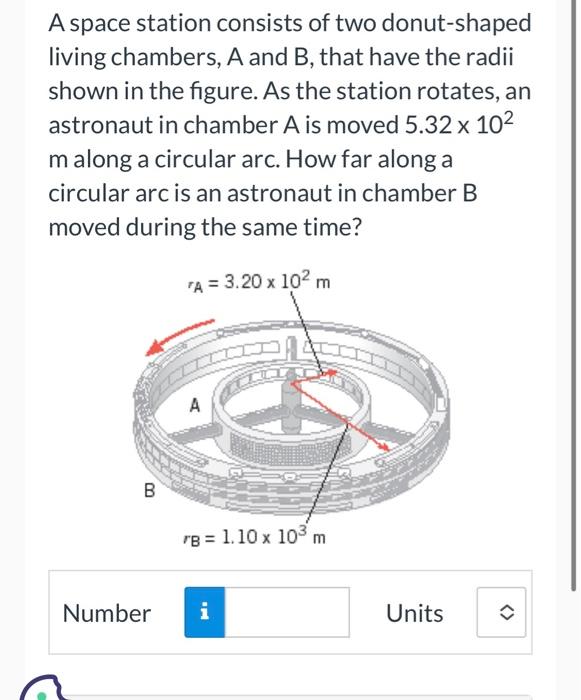

- A Space Station Consists Of Two Donut Shaped Living Chambers A And B That Have The Radii Shown In The Figure As The S 1 (52.5 KiB) Viewed 37 times
- A Space Station Consists Of Two Donut Shaped Living Chambers A And B That Have The Radii Shown In The Figure As The S 2 (56.32 KiB) Viewed 37 times
- A Space Station Consists Of Two Donut Shaped Living Chambers A And B That Have The Radii Shown In The Figure As The S 3 (48.15 KiB) Viewed 37 times
- A Space Station Consists Of Two Donut Shaped Living Chambers A And B That Have The Radii Shown In The Figure As The S 4 (47.85 KiB) Viewed 37 times

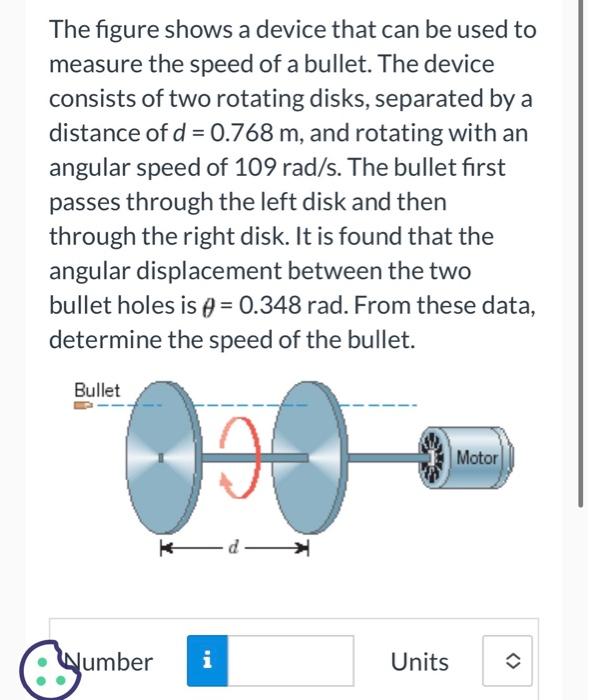

The figure shows a device that can be used to measure the speed of a bullet. The device consists of two rotating disks, separated by a distance of d = 0.768 m, and rotating with an angular speed of 109 rad/s. The bullet first passes through the left disk and then through the right disk. It is found that the angular displacement between the two bullet holes is = 0.348 rad. From these data, determine the speed of the bullet. Bullet Number H -d- i Units Motor <>

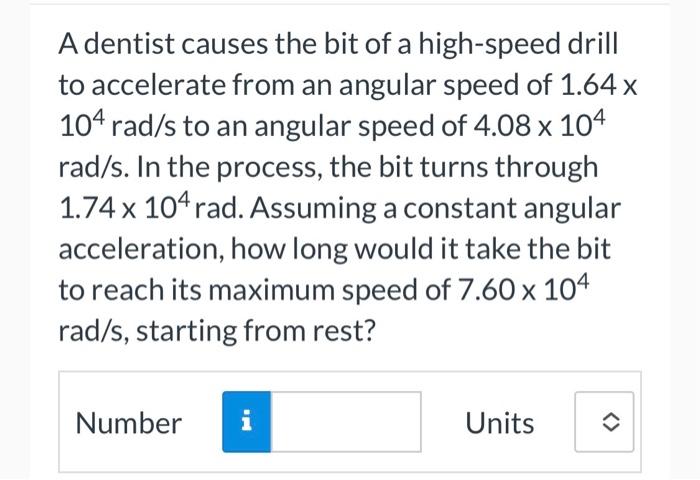

A dentist causes the bit of a high-speed drill to accelerate from an angular speed of 1.64 x 104 rad/s to an angular speed of 4.08 x 104 rad/s. In the process, the bit turns through 1.74 x 104 rad. Assuming a constant angular acceleration, how long would it take the bit to reach its maximum speed of 7.60 x 104 rad/s, starting from rest? Number Units

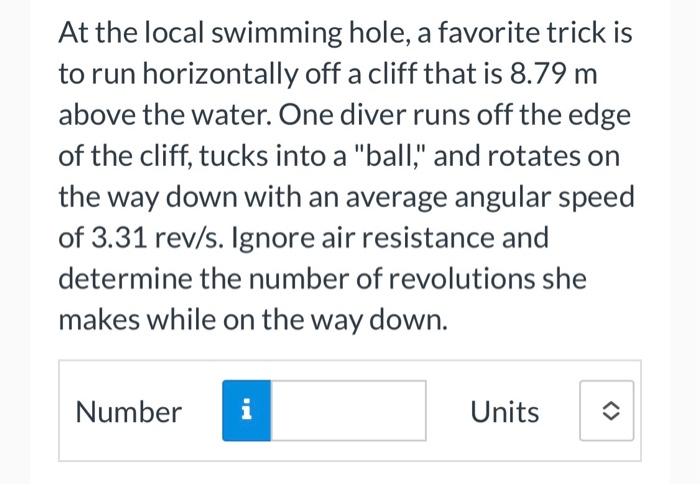

At the local swimming hole, a favorite trick is to run horizontally off a cliff that is 8.79 m above the water. One diver runs off the edge of the cliff, tucks into a "ball," and rotates on the way down with an average angular speed of 3.31 rev/s. Ignore air resistance and determine the number of revolutions she makes while on the way down. Number H Units
