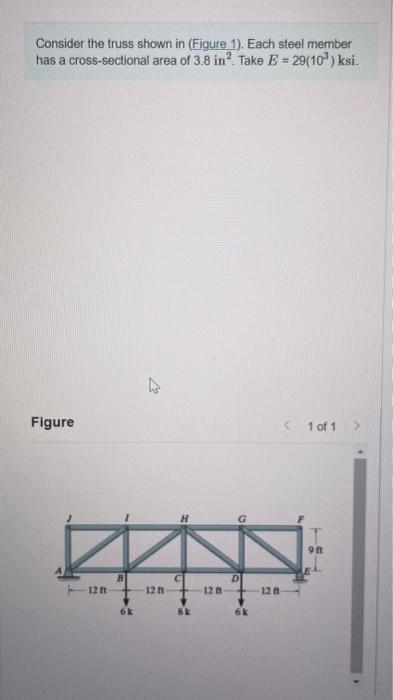

Consider the truss shown in (Figure 1). Each steel member has a cross-sectional area of 3.8 in². Take E = 29(10³) ksi. Figure 12 ft B 6k 4 12 ft G 8k 12 ft D 6k 12 A < 1 of 1 T 9ft EL

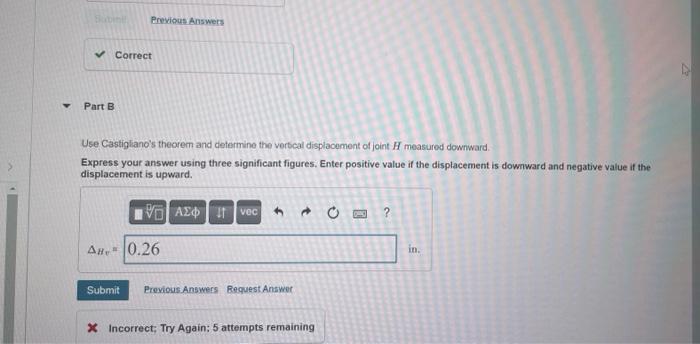

Y Subini Previous Answers ✓ Correct Part B Use Castigliano's theorem and determine the vertical displacement of joint H measured downward. Express your answer using three significant figures. Enter positive value if the displacement is downward and negative value if the displacement is upward. VE ΑΣΦ. 11 Ivec Δε = 10.26 Submit Previous Answers Request Answer X Incorrect; Try Again: 5 attempts remaining 0 ? in.
