- Q2 Circuits 40 Points A Circuit With Two Batteries Emfi And Em F2 And Three Resistors R R And R3 Is Shown In The 1 (40.59 KiB) Viewed 21 times

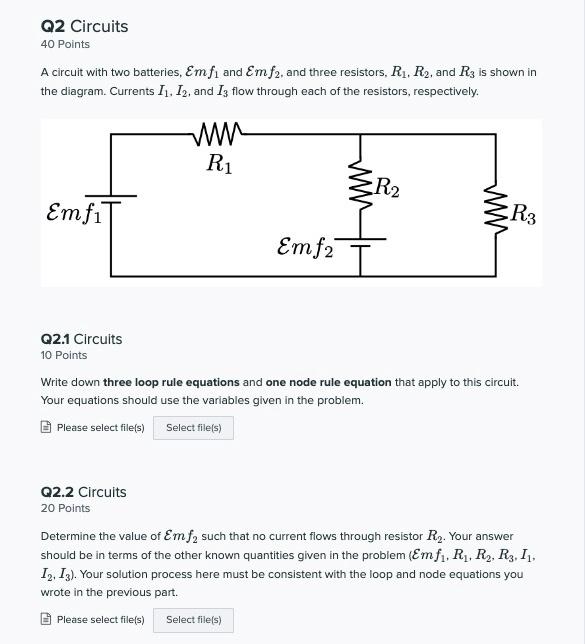

Q2 Circuits 40 Points A circuit with two batteries, Emfi and Em f2, and three resistors, R₁, R₂, and R3 is shown in the diagram. Currents I₁, I2, and I3 flow through each of the resistors, respectively. EmfiT Q2.1 Circuits 10 Points R₁ Q2.2 Circuits 20 Points Emf₂ R2 www R3 Write down three loop rule equations and one node rule equation that apply to this circuit. Your equations should use the variables given in the problem. Please select file(s) Select file(s) Determine the value of Em f₂ such that no current flows through resistor R₂. Your answer should be in terms of the other known quantities given in the problem (Emf₁, R₁, R₂, R3, I1, I2, I3). Your solution process here must be consistent with the loop and node equations you wrote in the previous part. Please select file(s) Select file(s)
