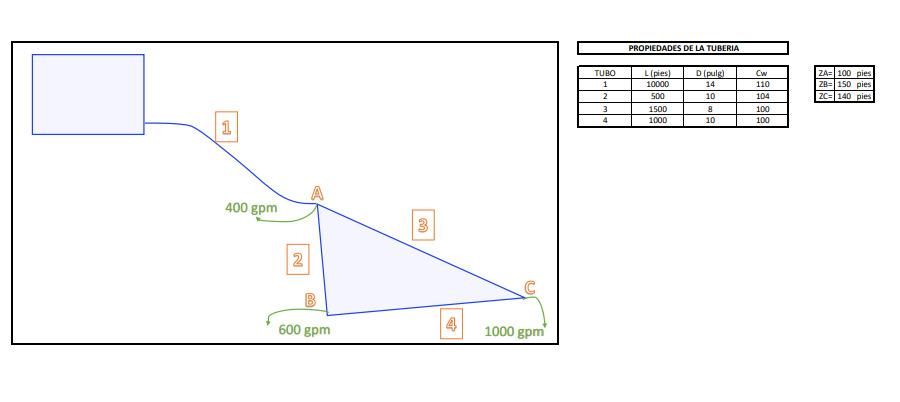

determine the elevation Z such that the pressures at the nodes (A, B and C) are not less than 60 psi
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
determine the elevation Z such that the pressures at the nodes (A, B and C) are not less than 60 psi
determine the elevation Z such that the pressures at the nodes(A, B and C) are not less than 60 psi
1 400 gpm N 600 gpm 1000 gpm TUBO 1 2 3 4 PROPIEDADES DE LA TUBERIA L(pies) 10000 500 1500 1000 D (pulg) 14 10 8 10 Cw 110 104 100 100 ZA= 100 pies ZB-150 pies ZC= 140 pies
1 400 gpm N 600 gpm 1000 gpm TUBO 1 2 3 4 PROPIEDADES DE LA TUBERIA L(pies) 10000 500 1500 1000 D (pulg) 14 10 8 10 Cw 110 104 100 100 ZA= 100 pies ZB-150 pies ZC= 140 pies
