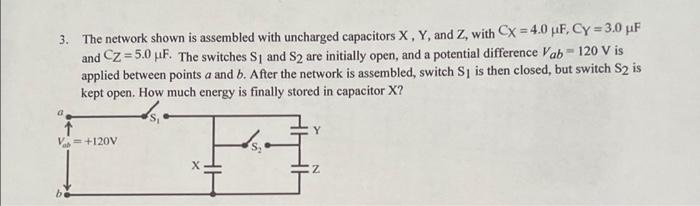

3. The network shown is assembled with uncharged capacitors X, Y, and Z, with CxX = 4.0 μF, Cy=3.0 μF and CZ = 5.0 µF. The switches S1 and S2 are initially open, and a potential difference Vab - 120 V is applied between points a and b. After the network is assembled, switch S1 is then closed, but switch S2 is kept open. How much energy is finally stored in capacitor X? V=+120V X Y Z
