- R1 Www V1 R3 Www V34 R2 Wwww V2 Consider The Circuit Shown Below Where R1 2 Ohm R2 7 Ohm R3 7 Ohm V1 10 V V2 1 (34.38 KiB) Viewed 29 times
R1 www V1+ R3 www V34 R2 wwww V2+ Consider the circuit shown below, where R1= 2 Ohm, R2= 7 Ohm, R3= 7 Ohm, V1= 10 V, V2=
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
R1 www V1+ R3 www V34 R2 wwww V2+ Consider the circuit shown below, where R1= 2 Ohm, R2= 7 Ohm, R3= 7 Ohm, V1= 10 V, V2=

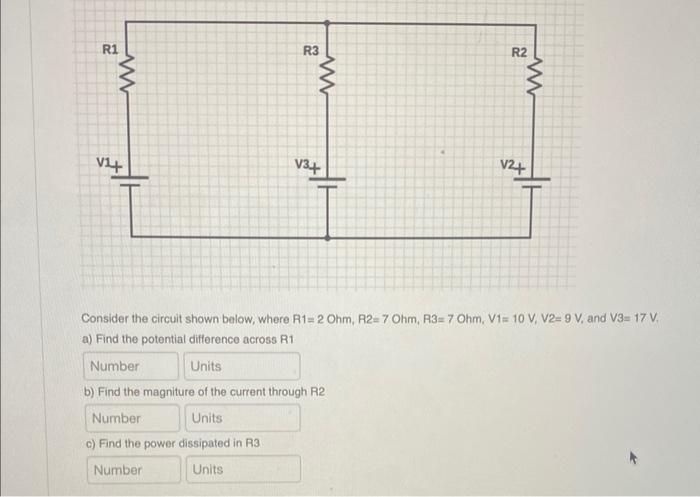

R1 www V1+ R3 www V34 R2 wwww V2+ Consider the circuit shown below, where R1= 2 Ohm, R2= 7 Ohm, R3= 7 Ohm, V1= 10 V, V2= 9 V, and V3= 17 V. a) Find the potential difference across R1 Number Units b) Find the magniture of the current through R2 Number Units c) Find the power dissipated in R3 Number Units
