Atrazine is a controversial organic molecule due to widespread contamination in drinking water but is still commonly use

[answerhappygod]

Atrazine Is A Controversial Organic Molecule Due To Widespread Contamination In Drinking Water But Is Still Commonly Use 1 (28.86 KiB) Viewed 33 times

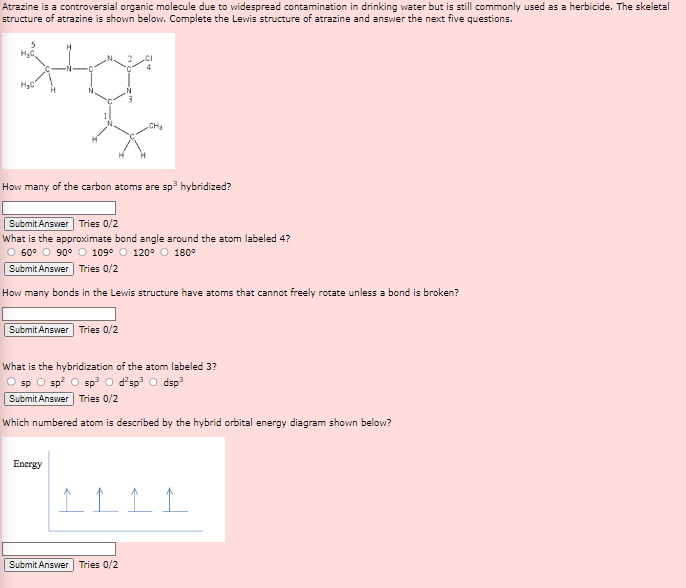

Atrazine is a controversial organic molecule due to widespread contamination in drinking water but is still commonly used as a herbicide. The skeletal structure of atrazine is shown below. Complete the Lewis structure of atrazine and answer the next five questions. Hor How many of the carbon atoms are sp³ hybridized? Submit Answer Tries 0/2 What is the approximate bond angle around the atom labeled 4? O 60° O 90° O 109° O 120° O 180° Submit Answer Tries 0/2 How many bonds in the Lewis structure have atoms that cannot freely rotate unless a bond is broken? Submit Answer Tries 0/2 CH₂ What is the hybridization of the atom labeled 3? O sp O sp² O sp³ O d²sp³ Odsp³ Submit Answer Tries 0/2 Which numbered atom is described by the hybrid orbital energy diagram shown below? Energy 1111 Submit Answer Tries 0/2
