P-3) Draw the following object converting the right-side view into an aligned section usingt the conventions of revoluti

Post by answerhappygod »

P 3 Draw The Following Object Converting The Right Side View Into An Aligned Section Usingt The Conventions Of Revoluti 1
P 3 Draw The Following Object Converting The Right Side View Into An Aligned Section Usingt The Conventions Of Revoluti 1 (32 KiB) Viewed 29 times

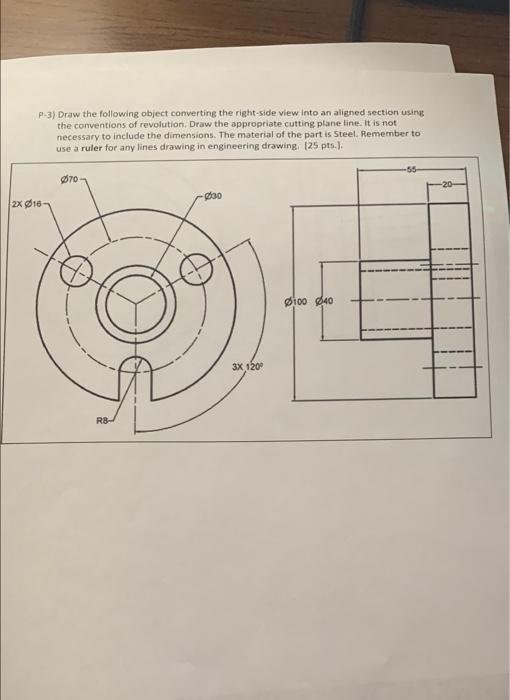

P-3) Draw the following object converting the right-side view into an aligned section usingt the conventions of revolution, Draw the appropriate cutting plane line. It is not necessary to include the dimensions. The material of the part is Steet. Remernbar to use a ruler for any lines drawing in engineering drawing i25 pts.].
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
