A solid simply supported beam is loaded with a concentrated load at the top center. The support is assumed to be rigid.

Post by answerhappygod »

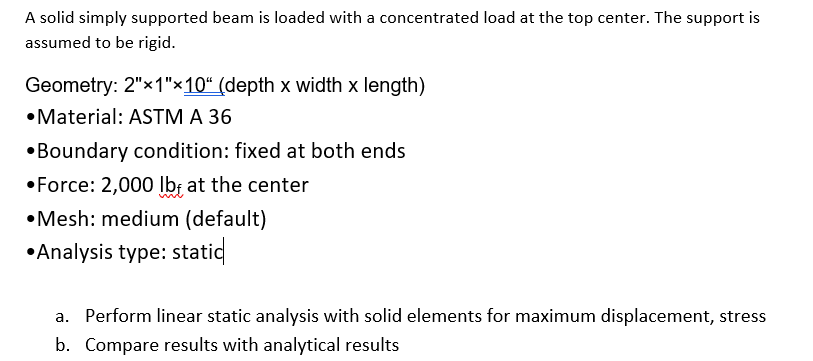

A Solid Simply Supported Beam Is Loaded With A Concentrated Load At The Top Center The Support Is Assumed To Be Rigid 1
A Solid Simply Supported Beam Is Loaded With A Concentrated Load At The Top Center The Support Is Assumed To Be Rigid 1 (22.82 KiB) Viewed 44 times
A solid simply supported beam is loaded with a concentrated load at the top center. The support is assumed to be rigid. Geometry: 2" ×1"×10"  (depth x width x length) - Material: ASTM A 36 - Boundary condition: fixed at both ends - Force: 2,000 lb at the center - Mesh: medium (default) - Analysis type: static a. Perform linear static analysis with solid elements for maximum displacement, stress b. Compare results with analytical results
