The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-se

[answerhappygod]

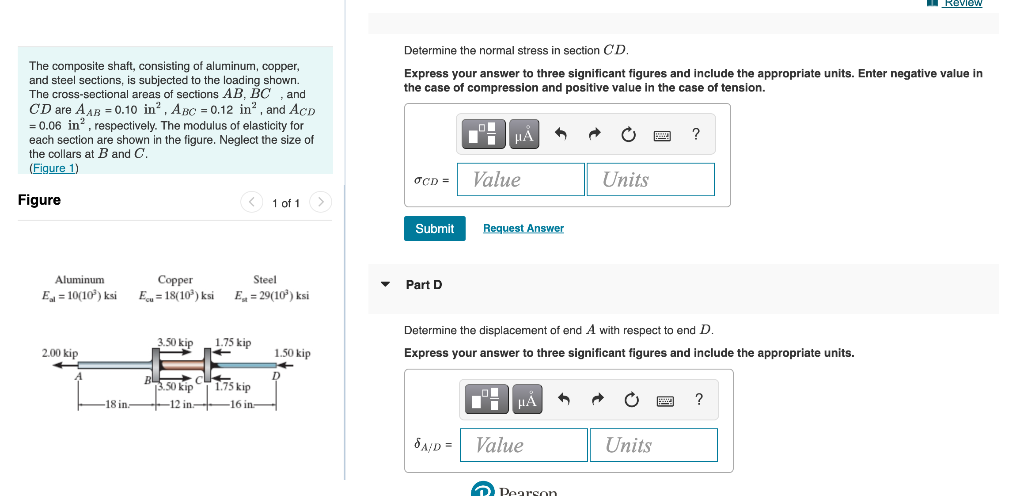

The Composite Shaft Consisting Of Aluminum Copper And Steel Sections Is Subjected To The Loading Shown The Cross Se 1 (87.03 KiB) Viewed 42 times

The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-sectional areas of sections AB, BC, and CD are AAB = 0.10 in², ABC = 0.12 in², and ACD = 0.06 in², respectively. The modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at B and C. (Figure 1) Figure Aluminum E = 10(10³) ksi 2.00 kip A Copper Steel Eu=18(10³) ksi E = 29(10³) ksi 3.50 kip BO 3.50 kip 18 in-12 in- < 1 of 1 C 1.75 kip 1.75 kip -16 in- 1.50 kip K Determine the normal stress in section CD. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. OCD = Submit Part D μÀ SA/D = Value Request Answer 4 HÅ Determine the displacement of end A with respect to end D. Express your answer to three significant figures and include the appropriate units. Value Units Pearson www. ? Units P Review ?
