The composite shaft, consisting of aluminum, copper, and steelsections, is subjected to the loading shown. The cross-sectionalareas of sections AB, BC, and CD are AAB = 0.08 in2 , ABC = 0.15in2 , and ACD = 0.04 in2 , respectively. The modulus of elasticityfor each section are shown in the figure. Neglect the size of thecollars at B and C.
Determine the normal stress in section AB, determine the normalstress in section BC, determine the normal stress in section CD,and determine the displacement of end A with respect to end D.

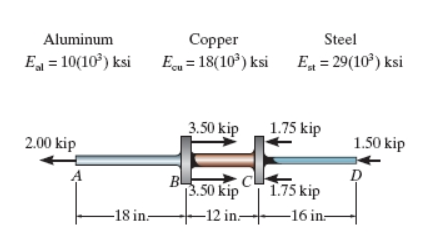

The Composite Shaft Consisting Of Aluminum Copper And Steel Sections Is Subjected To The Loading Shown The Cross Se 1 (31.75 KiB) Viewed 22 times
Aluminum Eal =10(103)ksi Copper Ecu =18(103)ksi Steel Est =29(103)ksi
