Problem 2 (6 points): A 20 mm-diameter rod made of the same material as rods AC and AD in the truss shown was tested to

Post by answerhappygod »

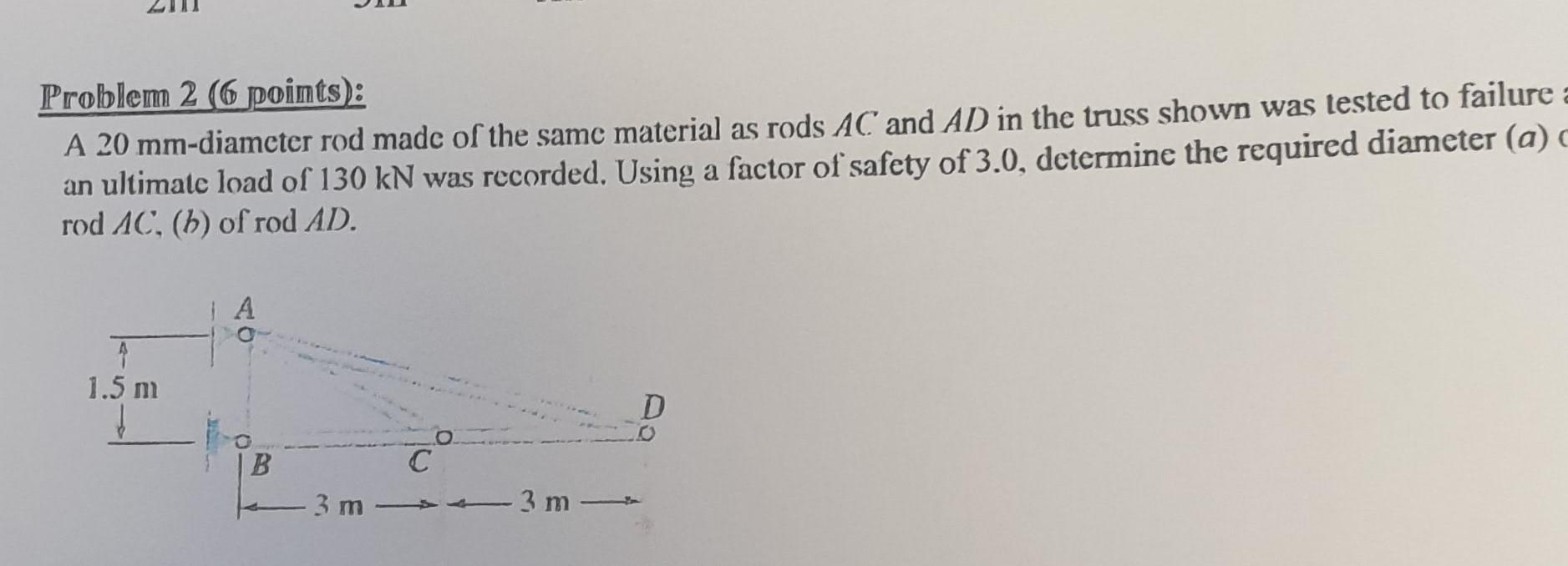

Problem 2 6 Points A 20 Mm Diameter Rod Made Of The Same Material As Rods Ac And Ad In The Truss Shown Was Tested To 1
Problem 2 6 Points A 20 Mm Diameter Rod Made Of The Same Material As Rods Ac And Ad In The Truss Shown Was Tested To 1 (72.2 KiB) Viewed 31 times
Problem 2 (6 points): A 20 mm-diameter rod made of the same material as rods AC and AD in the truss shown was tested to failure an ultimate load of 130 kN was recorded. Using a factor of safety of 3.0, determine the required diameter (a) c rod AC, (b) of rod AD. ↑ 1.5 m A B 3 m C - 3 m D
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
