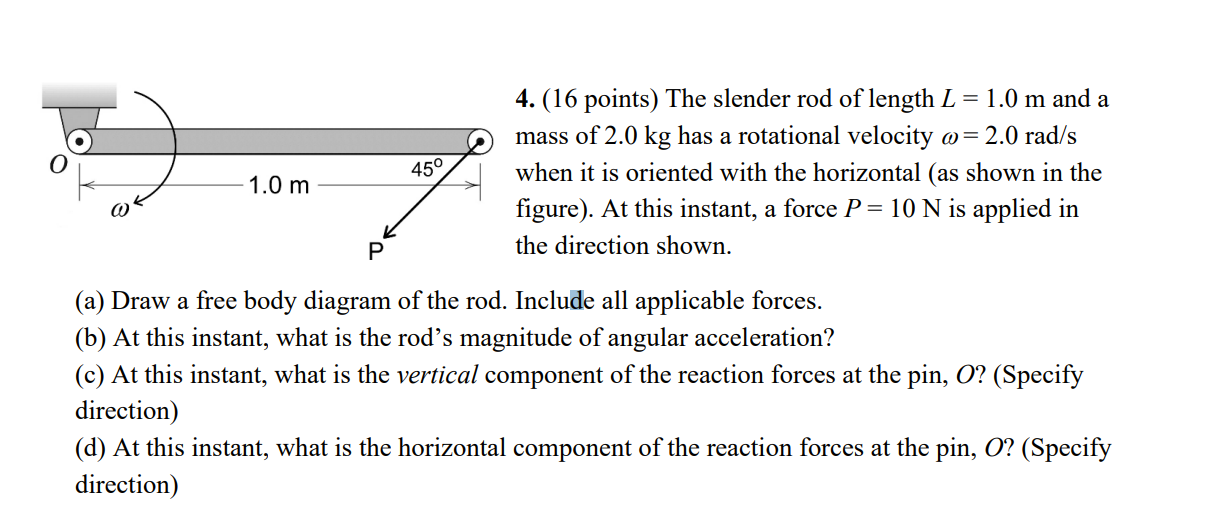

1.0 m P 45° 4. (16 points) The slender rod of length L = 1.0 m and a mass of 2.0 kg has a rotational velocity @= 2.0 rad/s when it is oriented with the horizontal (as shown in the figure). At this instant, a force P = 10 N is applied in the direction shown. (a) Draw a free body diagram of the rod. Include all applicable forces. (b) At this instant, what is the rod's magnitude of angular acceleration? (c) At this instant, what is the vertical component of the reaction forces at the pin, O? (Specify direction) (d) At this instant, what is the horizontal component of the reaction forces at the pin, O? (Specify direction)
