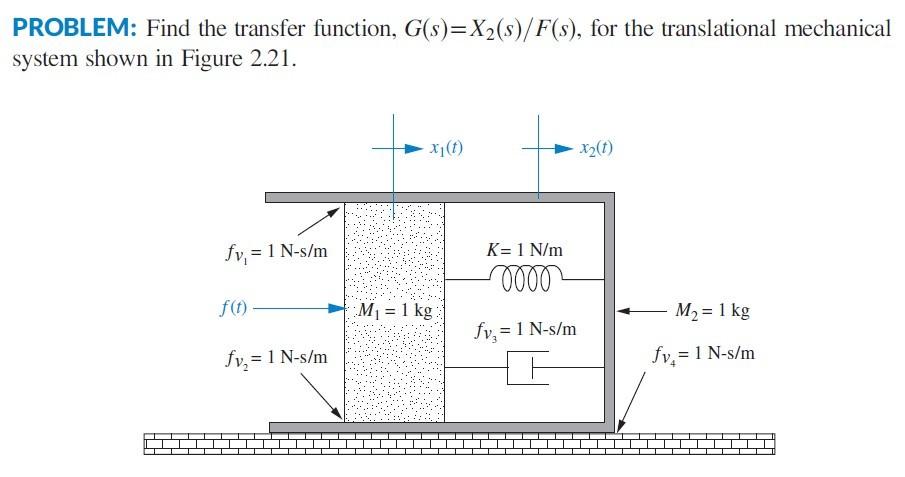

- Problem Find The Transfer Function G S X S F S For The Translational Mechanical System Shown In Figure 2 21 Fv 1 (42.77 KiB) Viewed 32 times
subject name control
PROBLEM: Find the transfer function, G(s)=X₂(s)/F(s), for the translational mechanical system shown in Figure 2.21. fv₁ = 1 N-s/m f(t). fv₂ = 1 N-s/m X₁ (1) M₁ = 1 kg: K= 1 N/m oooo fv₂ = 1 N-s/m x₂ (1) M₂ = 1 kg fv₂ = 1 N-s/m
