1. Use Methods of SECTIONS to determine the force in member AB, AE, AD, and ED. State if members are in tension or compr
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
1. Use Methods of SECTIONS to determine the force in member AB, AE, AD, and ED. State if members are in tension or compr

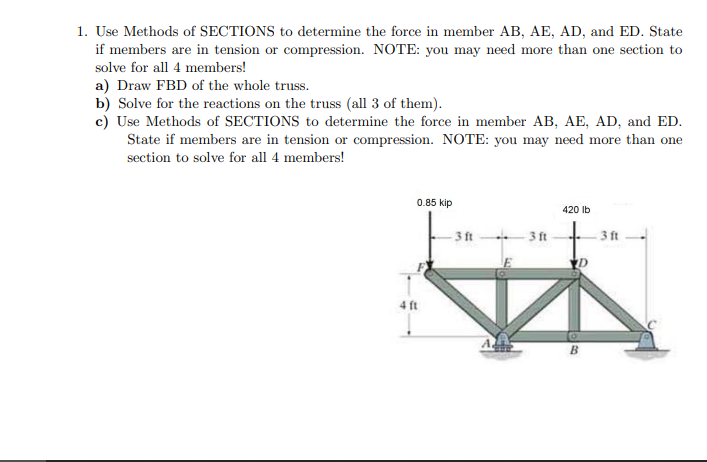

1. Use Methods of SECTIONS to determine the force in member AB, AE, AD, and ED. State if members are in tension or compression. NOTE: you may need more than one section to solve for all 4 members! a) Draw FBD of the whole truss. b) Solve for the reactions on the truss (all 3 of them). c) Use Methods of SECTIONS to determine the force in member AB, AE, AD, and ED. State if members are in tension or compression. NOTE: you may need more than one section to solve for all 4 members! 0.85 kip 4 ft -3 ft 3 ft 420 lb B 3 ft
