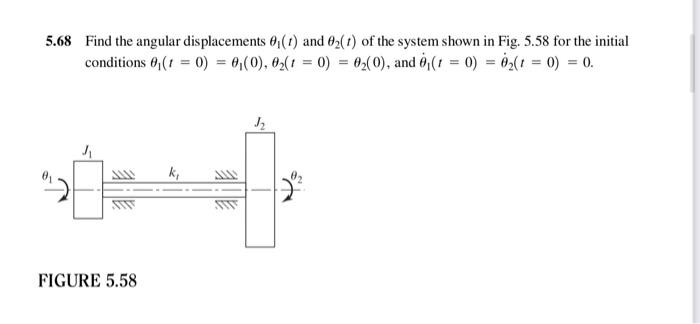

5.68 Find the angular displacements 0₁(1) and 02(1) of the system shown in Fig. 5.58 for the initial conditions (t = 0) = 0 (0), 92(1 = 0) = 02(0), and ô (1 = 0) = 02(1 = 0) = 0. FIGURE 5.58 ky Ji
• 5.68 o (find the NF and mode shapes and then find theta1 and theta2 as functions of time using J1 = J and J2 = 3J and the initial theta1 = 0.5 radians and the initial theta2 = 0.3 radians)
