5.59- Find the Steady-State Response of the system Shown in the fig. when the Base is subjected to a displacement y(t) =

[answerhappygod]

5 59 Find The Steady State Response Of The System Shown In The Fig When The Base Is Subjected To A Displacement Y T 1 (50.05 KiB) Viewed 46 times

1.using system values from problem 5.5

5 59 Find The Steady State Response Of The System Shown In The Fig When The Base Is Subjected To A Displacement Y T 2 (12.06 KiB) Viewed 46 times

2 .

5 59 Find The Steady State Response Of The System Shown In The Fig When The Base Is Subjected To A Displacement Y T 3 (15.76 KiB) Viewed 46 times

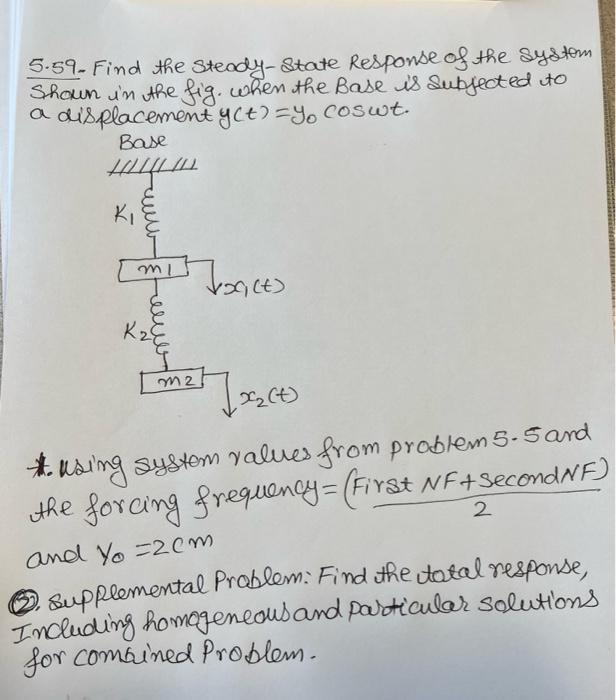

5.59- Find the Steady-State Response of the system Shown in the fig. when the Base is subjected to a displacement y(t) = y₂ coswt. Base 4040 K₁ mi K₂ m2 vo(t) Jx₂ x₂ (4) #using system values from problem 5-5 and the forcing frequency = (First NF+Second NF) 2 and Yo=20m supplemental Problem: Find the total response, Including homogeneous and particular solutions for combined Problem.
5.5 Find the natural frequencies of the system shown in Fig. 5.24, with m₁ = m, m₂ = 2m, k₁=k, and k₂ = 2k. Determine the response of the system when k = 1000 N/m, m = = 20 kg. and the initial values of the displacements of the masses my and m₂ are 1 and -1, respectively.
● 5.5 and 5.59 O Supplemental problem: Find the total response, including homogeneous and particular solutions for combined problems.
