Problem 1. The radar antenna shown below is communicating with a satellite. The reference frame attached to the ground i

Post by answerhappygod »

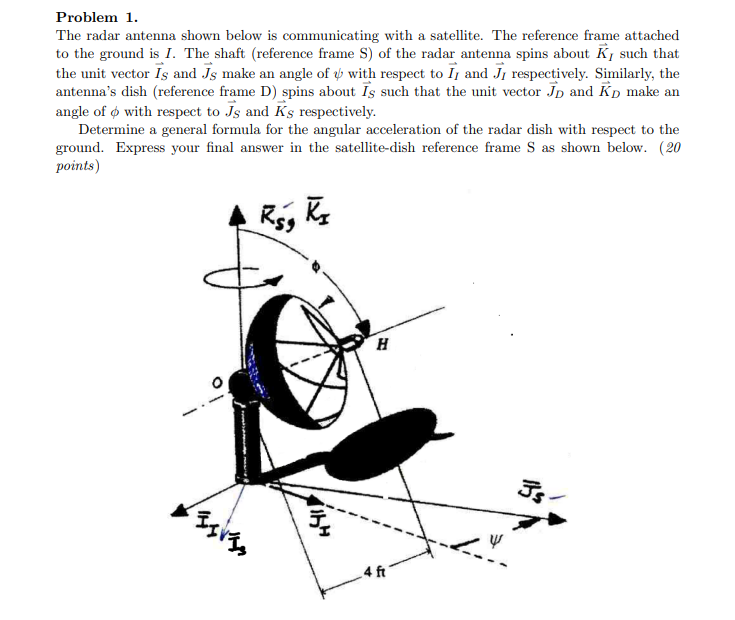

Problem 1 The Radar Antenna Shown Below Is Communicating With A Satellite The Reference Frame Attached To The Ground I 1
Problem 1 The Radar Antenna Shown Below Is Communicating With A Satellite The Reference Frame Attached To The Ground I 1 (120.66 KiB) Viewed 42 times
Problem 1. The radar antenna shown below is communicating with a satellite. The reference frame attached to the ground is I. The shaft (reference frame S) of the radar antenna spins about Ky such that the unit vector Is and Js make an angle of with respect to I and J respectively. Similarly, the antenna's dish (reference frame D) spins about Is such that the unit vector Jp and Kp make an angle of with respect to Js and Ks respectively. Determine a general formula for the angular acceleration of the radar dish with respect to the ground. Express your final answer in the satellite-dish reference frame S as shown below. (20 points) RS, Kr FIVES libH H 4 ft
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
