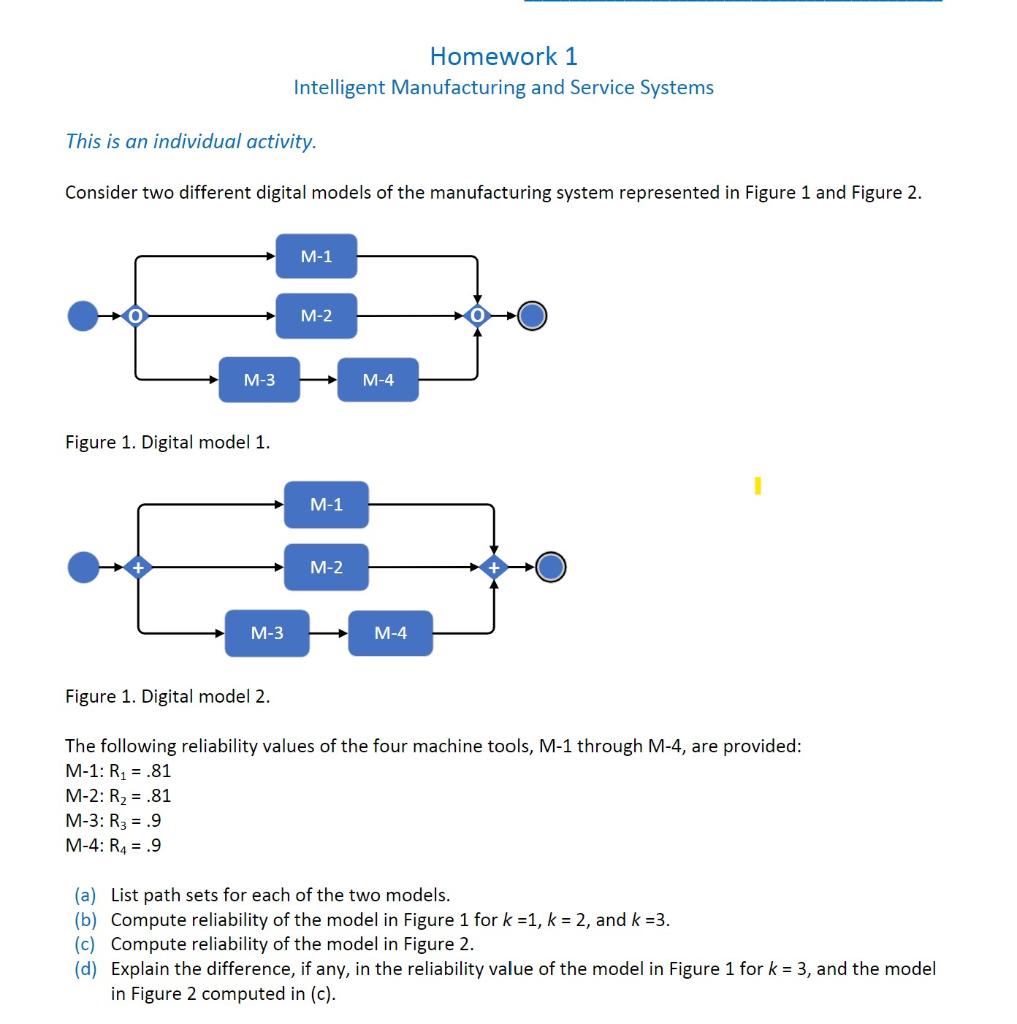

This is an individual activity. Consider two different digital models of the manufacturing system represented in Figure 1 and Figure 2. M-3 Figure 1. Digital model 1. Homework 1 Intelligent Manufacturing and Service Systems M-3 M-1 M-2 M-1 M-2 M-4 M-4 Figure 1. Digital model 2. The following reliability values of the four machine tools, M-1 through M-4, are provided: M-1: R₁ = .81 M-2: R₂ = .81 M-3: R3 = .9 M-4: R₂ = .9 (a) List path sets for each of the two models. (b) Compute reliability of the model in Figure 1 for k=1, k = 2, and k =3. (c) Compute reliability of the model in Figure 2. (d) Explain the difference, if any, in the reliability value of the model in Figure 1 for k= 3, and the model in Figure 2 computed in (c).

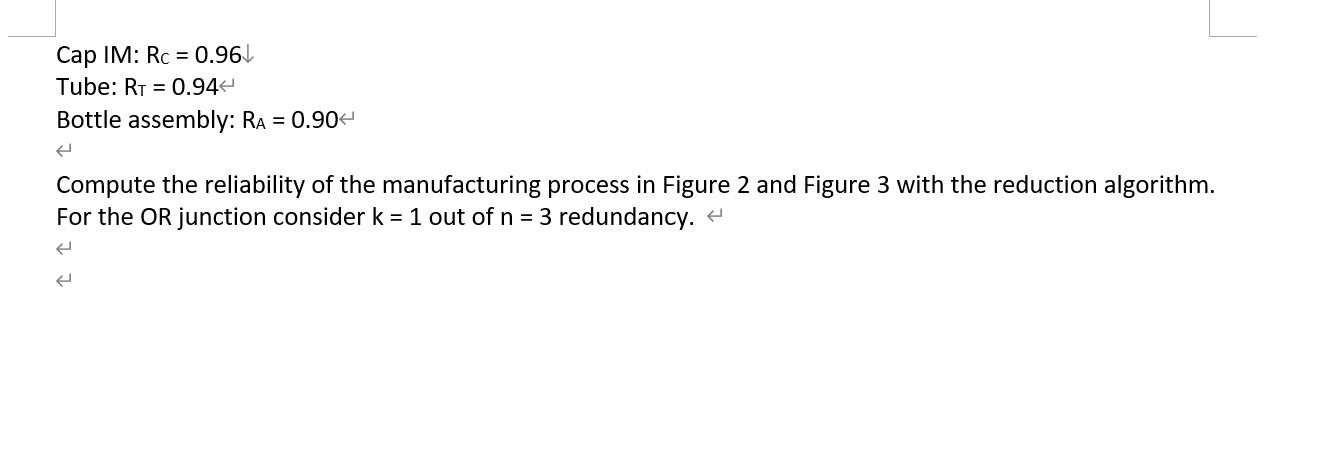

Cap IM: Rc = 0.96 Tube: RT = 0.944 Bottle assembly: RA = 0.90< Compute the reliability of the manufacturing process in Figure 2 and Figure 3 with the reduction algorithm. For the OR junction consider k = 1 out of n = 3 redundancy. لے
