Q1(2). The simple beam is supported by a roller at point A and a pin at point B. It is subjected to a concentrated force

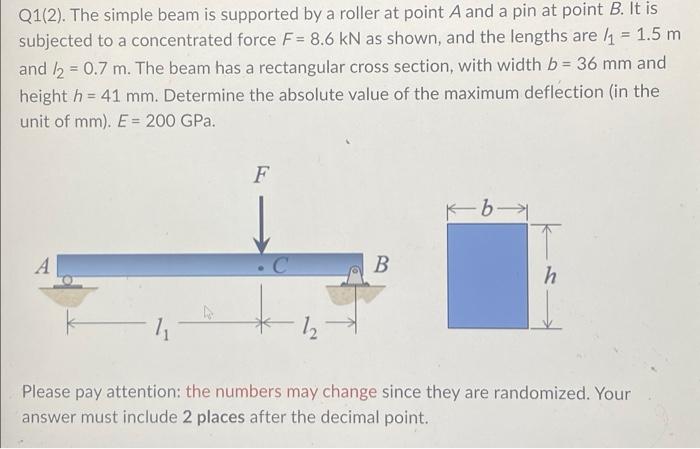

Q1(2). The simple beam is supported by a roller at point A and a pin at point B. It is subjected to a concentrated force F= 8.6 kN as shown, and the lengths are /₁ = 1.5 m and /2 = 0.7 m. The beam has a rectangular cross section, with width b = 36 mm and height h 41 mm. Determine the absolute value of the maximum deflection (in the unit of mm). E= 200 GPa. A F C B Kb h Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point.
