Question 1 A 10kg mass is resting on a rough surface having viscous friction damping coefficient of c = 20Nsm-1 as shown

[answerhappygod]

Question 1 A 10kg Mass Is Resting On A Rough Surface Having Viscous Friction Damping Coefficient Of C 20nsm 1 As Shown 1 (40.01 KiB) Viewed 33 times

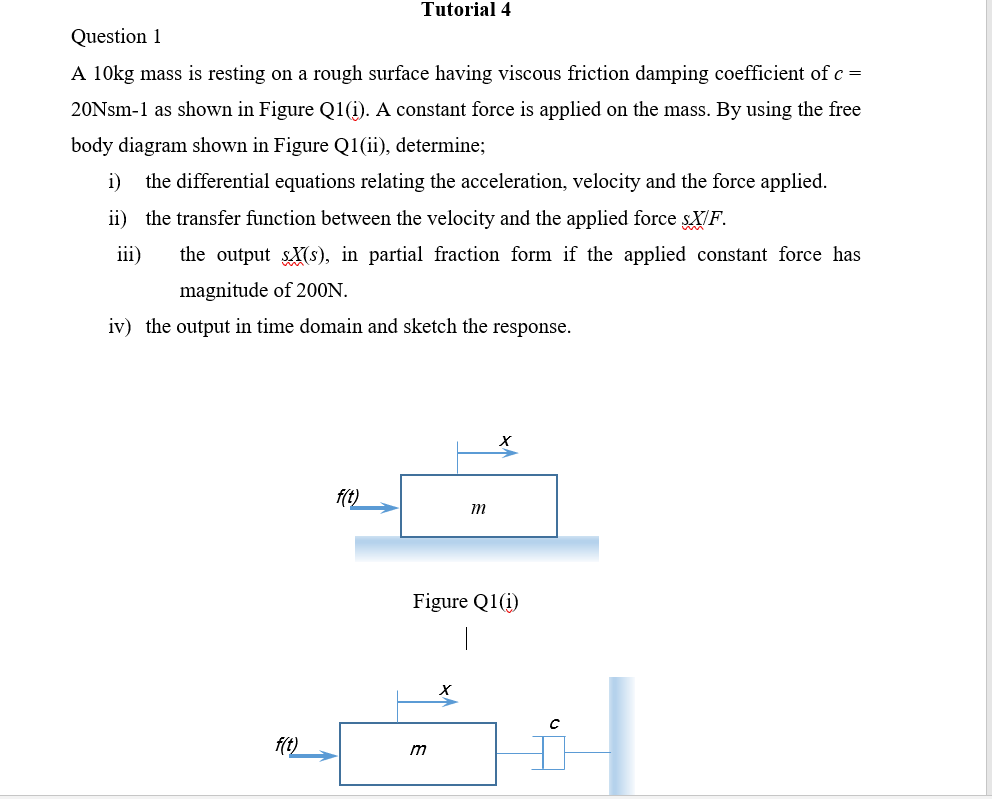

Question 1 A 10kg mass is resting on a rough surface having viscous friction damping coefficient of c = 20Nsm-1 as shown in Figure Q1(1). A constant force is applied on the mass. By using the free body diagram shown in Figure Q1(ii), determine; i) the differential equations relating the acceleration, velocity and the force applied. ii) the transfer function between the velocity and the applied force sX/F. iii) Tutorial 4 the output sX(s), in partial fraction form if the applied constant force has magnitude of 200N. iv) the output in time domain and sketch the response. f(t) f(t) Figure Q1(i) 1 m m X с
