A tank in Fig. Q2 has two inlet pipes 1 and 2 and two outlet pipes 3 and 4. The mean velocity of water inflow and outflo

Post by answerhappygod »

A Tank In Fig Q2 Has Two Inlet Pipes 1 And 2 And Two Outlet Pipes 3 And 4 The Mean Velocity Of Water Inflow And Outflo 1
A Tank In Fig Q2 Has Two Inlet Pipes 1 And 2 And Two Outlet Pipes 3 And 4 The Mean Velocity Of Water Inflow And Outflo 1 (35.39 KiB) Viewed 30 times

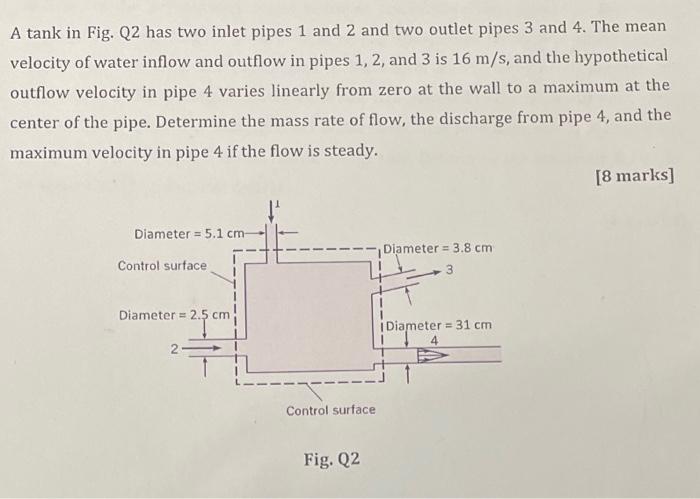

A tank in Fig. Q2 has two inlet pipes 1 and 2 and two outlet pipes 3 and 4. The mean velocity of water inflow and outflow in pipes 1, 2, and 3 is 16 m/s, and the hypothetical outflow velocity in pipe 4 varies linearly from zero at the wall to a maximum at the center of the pipe. Determine the mass rate of flow, the discharge from pipe 4, and the maximum velocity in pipe 4 if the flow is steady. Diameter = 5.1 cm- Control surface Diameter = 2.5 cm 2 Control surface Fig. Q2 Diameter = 3.8 cm ¡Diameter = 31 cm [8 marks]
