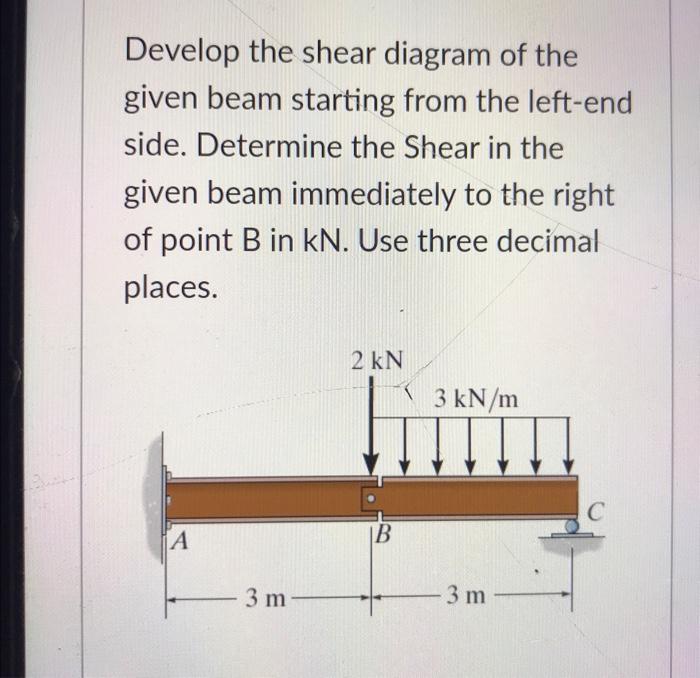

Develop the shear diagram of the given beam starting from the left-end side. Determine the Shear in the given beam immediately to the right of point B in kN. Use three decimal places. A - 3 m- 2 kN |В 3 kN/m -3 m C

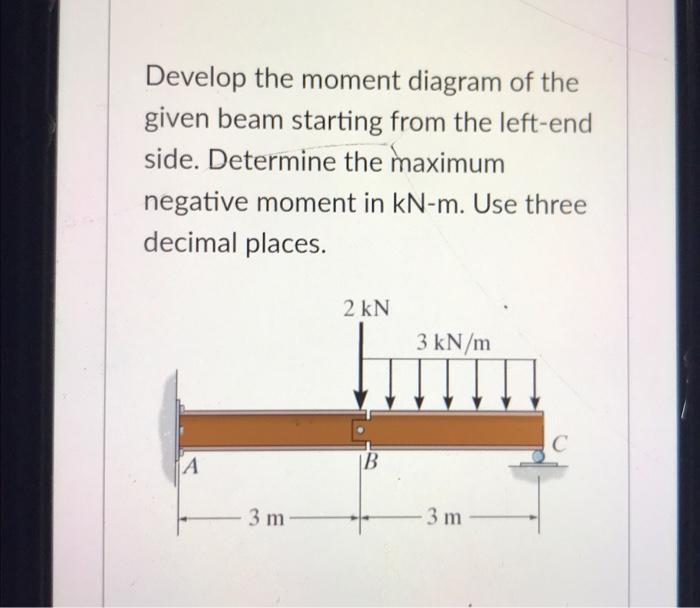

Develop the moment diagram of the given beam starting from the left-end side. Determine the maximum negative moment in kN-m. Use three decimal places. A 3 m 2 kN B 3 kN/m -3 m C
