6 ksi 14 ksi A metallic bar having elastic modulus, E-16 10' ksi, Poisson's ratio, v=0.33, and thermal expansion coeffic

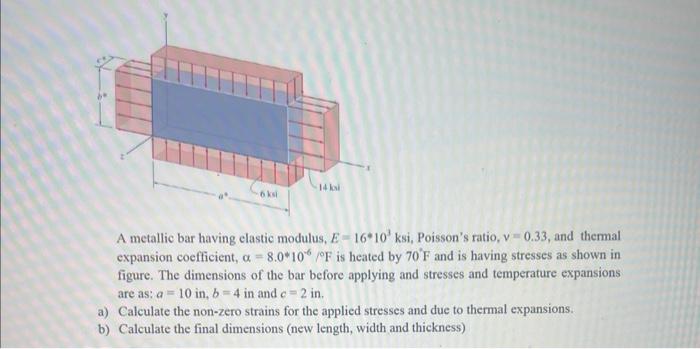

6 ksi 14 ksi A metallic bar having elastic modulus, E-16 10' ksi, Poisson's ratio, v=0.33, and thermal expansion coefficient, a = 8.0*106 /°F is heated by 70'F and is having stresses as shown in figure. The dimensions of the bar before applying and stresses and temperature expansions are as: a 10 in, b=4 in and c = 2 in. a) Calculate the non-zero strains for the applied stresses and due to thermal expansions. b) Calculate the final dimensions (new length, width and thickness)
