a) Based on the Bipolar Junction Transistor (BJT), identify the following: i. The largest current ii. The smallest curre

Post by answerhappygod »

A Based On The Bipolar Junction Transistor Bjt Identify The Following I The Largest Current Ii The Smallest Curre 1
A Based On The Bipolar Junction Transistor Bjt Identify The Following I The Largest Current Ii The Smallest Curre 1 (84.1 KiB) Viewed 35 times

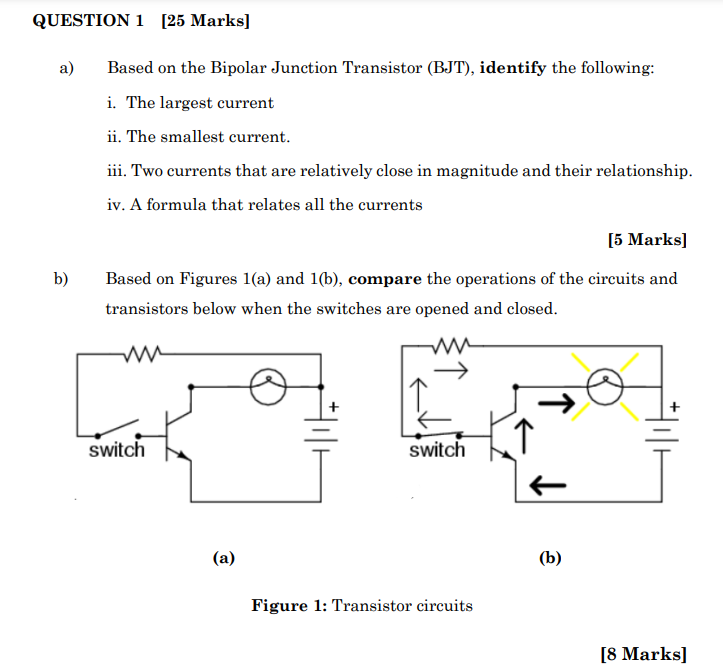

a) Based on the Bipolar Junction Transistor (BJT), identify the following: i. The largest current ii. The smallest current. iii. Two currents that are relatively close in magnitude and their relationship. iv. A formula that relates all the currents [5 Marks] b) Based on Figures 1(a) and 1(b), compare the operations of the circuits and transistors below when the switches are opened and closed. (a) (b) Figure 1: Transistor circuits [8 Marks]
