Using three timers with preset values respectively 40sec,30sec, and 20sec, create a program (CX programmer), which will

[answerhappygod]

Using Three Timers With Preset Values Respectively 40sec 30sec And 20sec Create A Program Cx Programmer Which Will 1 (53.82 KiB) Viewed 41 times

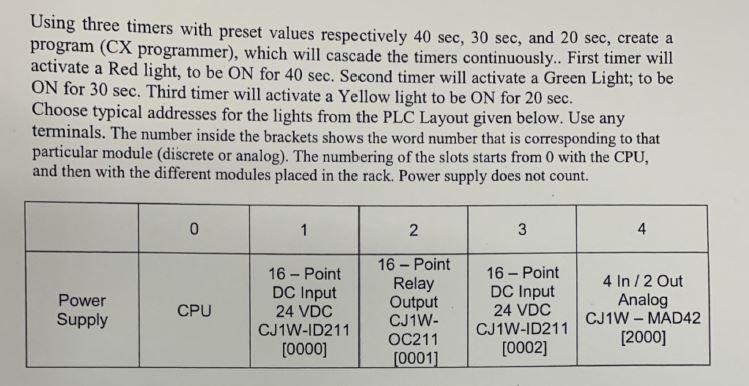

Using three timers with preset values respectively 40sec,30sec, and 20sec, create a program (CX programmer), which will cascade the timers continuously.. First timer will activate a Red light, to be ON for 40sec. Second timer will activate a Green Light; to be ON for 30sec. Third timer will activate a Yellow light to be ON for 20sec. Choose typical addresses for the lights from the PLC Layout given below. Use any terminals. The number inside the brackets shows the word number that is corresponding to that particular module (discrete or analog). The numbering of the slots starts from 0 with the CPU, and then with the different modules placed in the rack. Power supply does not count.
