Write a typical address for the input and output in the rung below according to the given I/O table.Input contact repres

Post by answerhappygod »

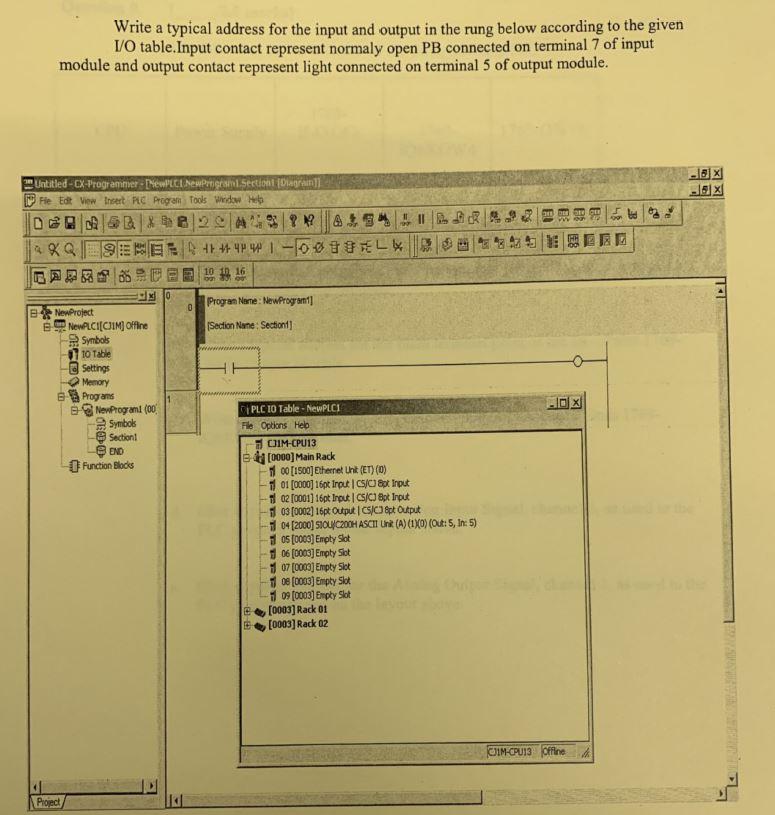

Write A Typical Address For The Input And Output In The Rung Below According To The Given I O Table Input Contact Repres 1
Write A Typical Address For The Input And Output In The Rung Below According To The Given I O Table Input Contact Repres 1 (76.01 KiB) Viewed 47 times
Write a typical address for the input and output in the rung below according to the given I/O table.Input contact represent normaly open PB connected on terminal 7 of input module and output contact represent light connected on terminal 5 of output module.
