(a) Draw the equivalent circuit of transformer and derive its condition for maximum efficiency. (3) (b) A single-phase 3

[answerhappygod]

A Draw The Equivalent Circuit Of Transformer And Derive Its Condition For Maximum Efficiency 3 B A Single Phase 3 1 (48.52 KiB) Viewed 51 times

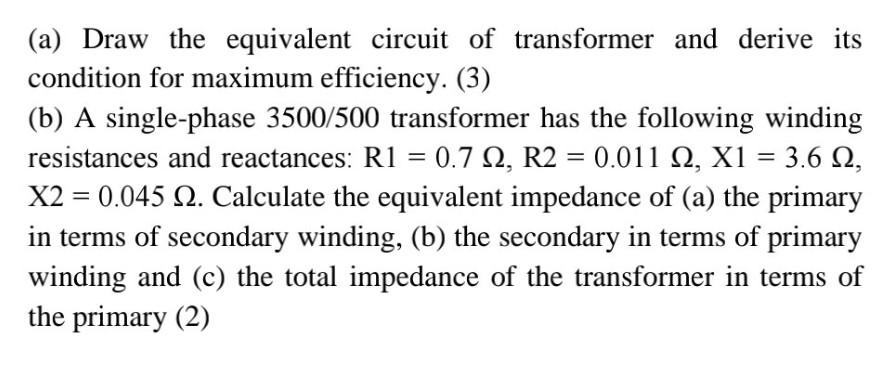

(a) Draw the equivalent circuit of transformer and derive its condition for maximum efficiency. (3) (b) A single-phase 3500/500 transformer has the following winding resistances and reactances: R1 = 0.7 02, R2 = 0.011 Q2, X1 = 3.6 Q, X2 = 0.045 2. Calculate the equivalent impedance of (a) the primary in terms of secondary winding, (b) the secondary in terms of primary winding and (c) the total impedance of the transformer in terms of the primary (2)
