Question 5 Latest microprocessors designs are based on pipelined microprocessors. Figure 1 shows a block diagram of a 5-

Post by answerhappygod »

Question 5 Latest Microprocessors Designs Are Based On Pipelined Microprocessors Figure 1 Shows A Block Diagram Of A 5 1
Question 5 Latest Microprocessors Designs Are Based On Pipelined Microprocessors Figure 1 Shows A Block Diagram Of A 5 1 (92.74 KiB) Viewed 28 times
subject : computer architecture

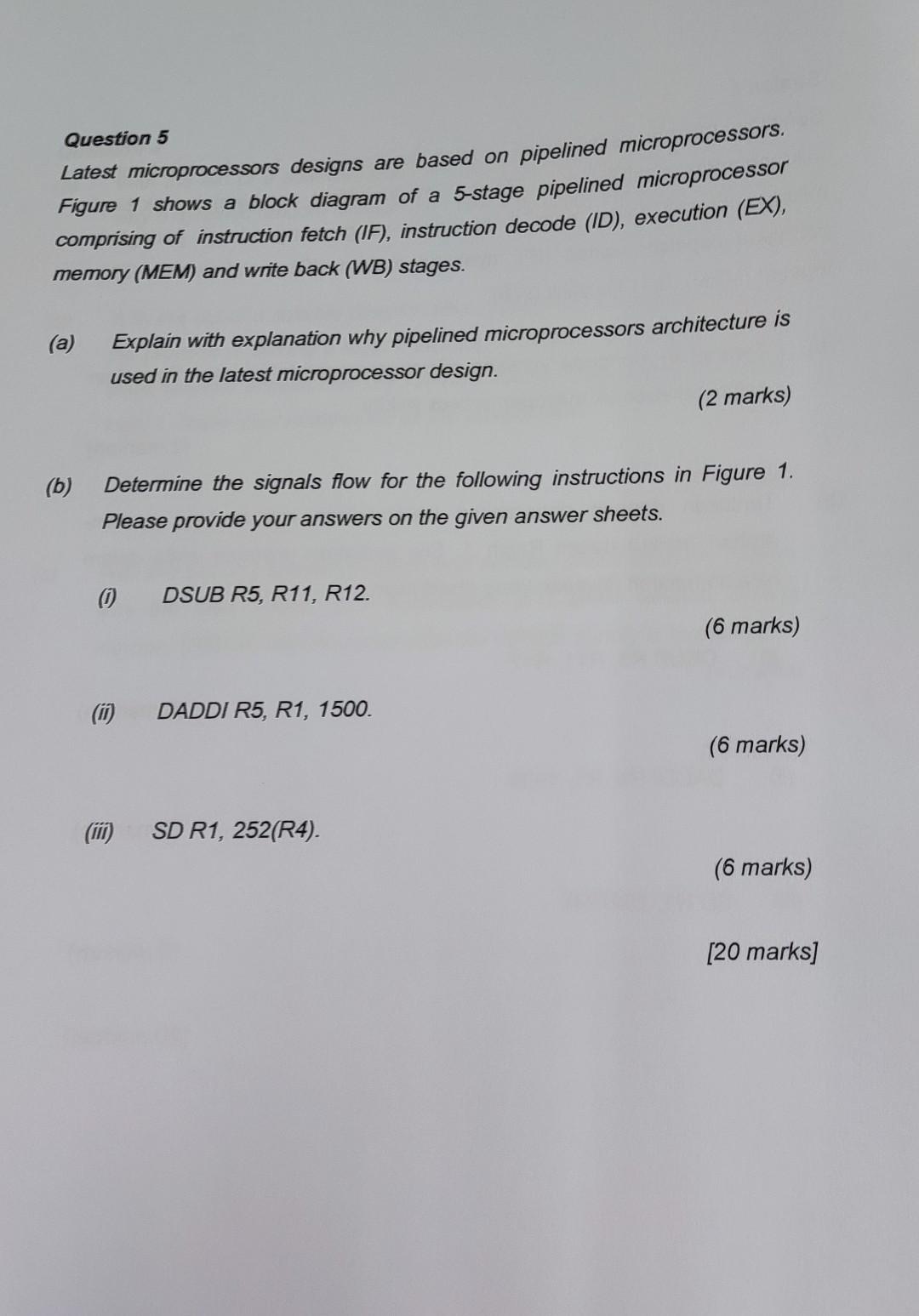

Question 5 Latest microprocessors designs are based on pipelined microprocessors. Figure 1 shows a block diagram of a 5-stage pipelined microprocessor comprising of instruction fetch (IF), instruction decode (ID), execution (EX), memory (MEM) and write back (WB) stages. (a) (b) Explain with explanation why pipelined microprocessors architecture is used in the latest microprocessor design. Determine the signals flow for the following instructions in Figure 1. Please provide your answers on the given answer sheets. (1) (ii) DSUB R5, R11, R12. DADDI R5, R1, 1500. (2 marks) SD R1, 252(R4). (6 marks) (6 marks) (6 marks) [20 marks]
