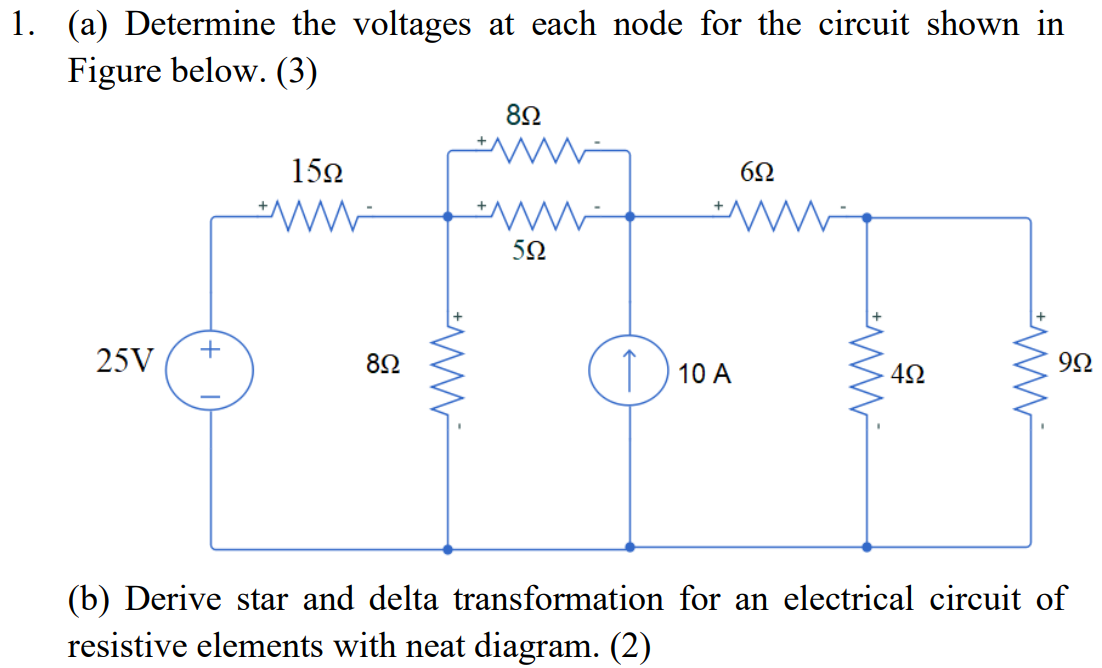

1. (a) Determine the voltages at each node for the circuit shown in Figure below. (3) 25V + 159 www 892 *WW 892 592 ↑ 10

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1. (a) Determine the voltages at each node for the circuit shown in Figure below. (3) 25V + 159 www 892 *WW 892 592 ↑ 10

Post by answerhappygod »

1 A Determine The Voltages At Each Node For The Circuit Shown In Figure Below 3 25v 159 Www 892 Ww 892 592 10 1
1 A Determine The Voltages At Each Node For The Circuit Shown In Figure Below 3 25v 159 Www 892 Ww 892 592 10 1 (112.15 KiB) Viewed 45 times
1. (a) Determine the voltages at each node for the circuit shown in Figure below. (3) 25V + 159 www 892 *WW 892 592 ↑ 10 A 652 -Ww= 492 ww 992 (b) Derive star and delta transformation for an electrical circuit of resistive elements with neat diagram. (2)
