Matching technique using stub is one of the matching solutions that can be used in many microwave circuit design. (i) If

Post by answerhappygod »

Matching Technique Using Stub Is One Of The Matching Solutions That Can Be Used In Many Microwave Circuit Design I If 1
Matching Technique Using Stub Is One Of The Matching Solutions That Can Be Used In Many Microwave Circuit Design I If 1 (26.92 KiB) Viewed 28 times

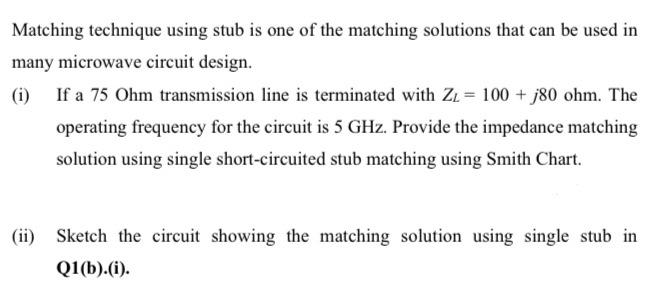

Matching technique using stub is one of the matching solutions that can be used in many microwave circuit design. (i) If a 75 Ohm transmission line is terminated with ZL= 100 +j80 ohm. The operating frequency for the circuit is 5 GHz. Provide the impedance matching solution using single short-circuited stub matching using Smith Chart. (ii) Sketch the circuit showing the matching solution using single stub in Q1(b).(i).
