Consider an NPN BJT with the following parameters. Beta = 85, Cmu 1 pF, Co= .5 pF, and Cpi = 6 pF. With IC = 70 mA, r0 =

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Consider an NPN BJT with the following parameters. Beta = 85, Cmu 1 pF, Co= .5 pF, and Cpi = 6 pF. With IC = 70 mA, r0 =

Post by answerhappygod »

Consider An Npn Bjt With The Following Parameters Beta 85 Cmu 1 Pf Co 5 Pf And Cpi 6 Pf With Ic 70 Ma R0 1
Consider An Npn Bjt With The Following Parameters Beta 85 Cmu 1 Pf Co 5 Pf And Cpi 6 Pf With Ic 70 Ma R0 1 (36.65 KiB) Viewed 29 times

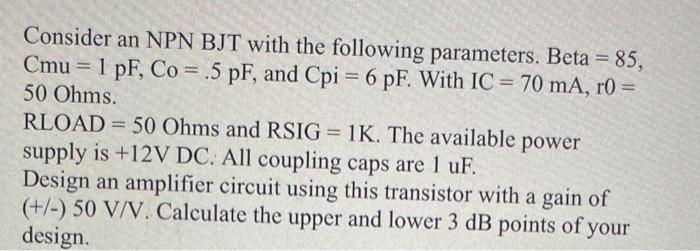

Consider an NPN BJT with the following parameters. Beta = 85, Cmu 1 pF, Co= .5 pF, and Cpi = 6 pF. With IC = 70 mA, r0 = 50 Ohms. - RLOAD= 50 Ohms and RSIG= 1K. The available power supply is +12V DC. All coupling caps are 1 uF. Design an amplifier circuit using this transistor with a gain of (+/-) 50 V/V. Calculate the upper and lower 3 dB points of your design.
