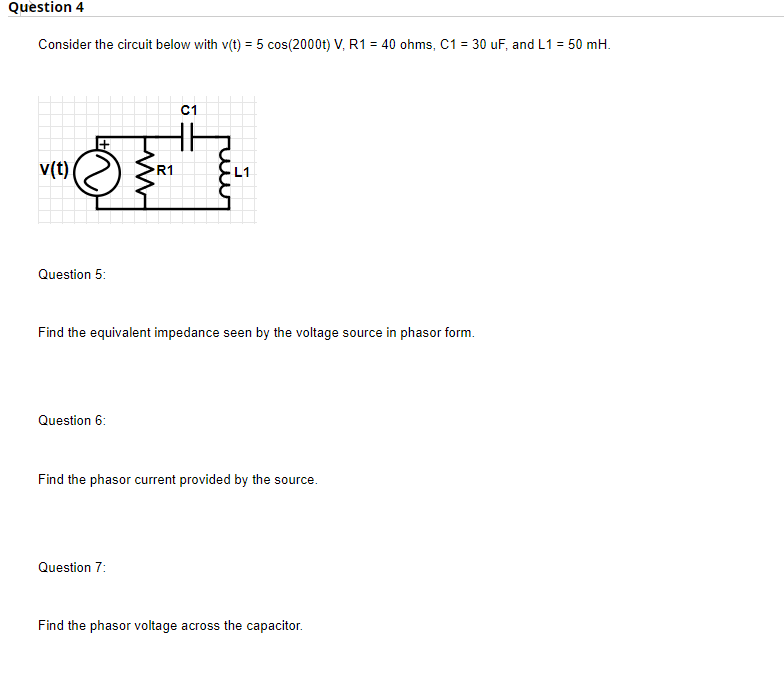

Consider The Circuit Below With V T 5cos 2000t V R1 40ohms C1 30uf And L1 50mh Question 5 Find The Equivalent Impeda 1 (18.14 KiB) Viewed 32 times
Consider the circuit below with v(t)=5cos(2000t)V,R1=40ohms,C1=30uF, and L1=50mH. Question 5: Find the equivalent impedance seen by the voltage source in phasor form. Question 6: Find the phasor current provided by the source. Question 7: Find the phasor voltage across the capacitor.
The voltage across a system is v(t)=100cos(2000t+15∘)V. The current drawn is i(t)=60cos(2000t+45∘)A. Question 8 : Find the apparent power and the average power. (You should have two answers for this question.) Question 9 : What is the power factor and is it lagging or leading? (You should have two answers for this question.)
