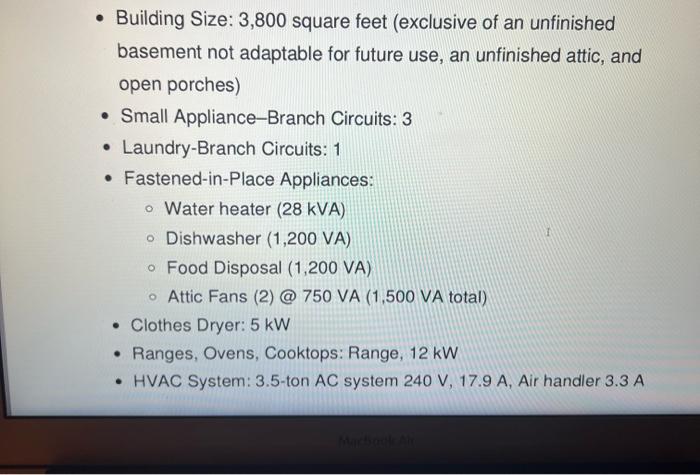

Building Size: 3,800 square feet (exclusive of an unfinished basement not adaptable for future use, an unfinished attic, and open porches) • Small Appliance-Branch Circuits: 3 Laundry-Branch Circuits: 1 • Fastened-in-Place Appliances: o Water heater (28 kVA) o Dishwasher (1,200 VA) o Food Disposal (1,200 VA) o Attic Fans (2) @ 750 VA (1,500 VA total) • Clothes Dryer: 5 kW • Ranges, Ovens, Cooktops: Range, 12 kW • HVAC System: 3.5-ton AC system 240 V, 17.9 A, Air handler 3.3 A

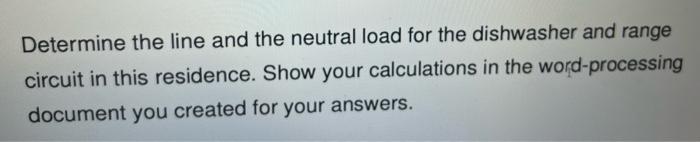

Determine the line and the neutral load for the dishwasher and range circuit in this residence. Show your calculations in the word-processing document you created for your answers.
