The following measurements were made on a resistive two-port network: Condition 1 - create a short circuit at port 2 and

[answerhappygod]

The Following Measurements Were Made On A Resistive Two Port Network Condition 1 Create A Short Circuit At Port 2 And 1 (31.11 KiB) Viewed 35 times

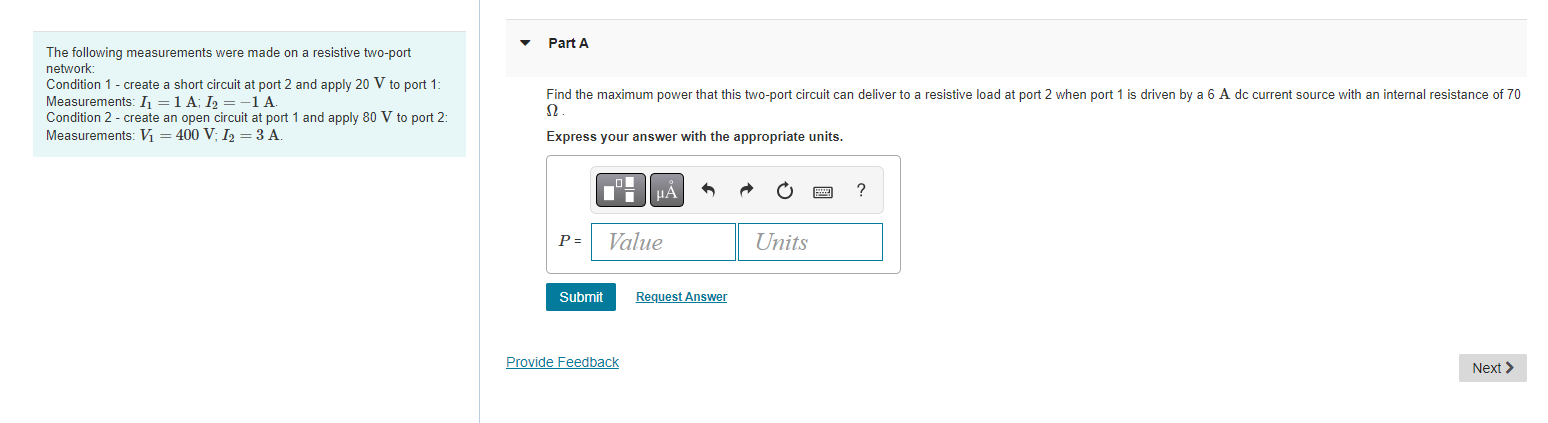

The following measurements were made on a resistive two-port network: Condition 1 - create a short circuit at port 2 and apply 20 V to port 1: Measurements: I₁ = 1 A; I₂ = −1 A. Condition 2 - create an open circuit at port 1 and apply 80 V to port 2: Measurements: V₁ = 400 V; I₂ = 3 A. Part A Find the maximum power that this two-port circuit can deliver to a resistive load at port 2 when port 1 is driven by a 6 A dc current source with an internal resistance of 70 Ω Express your answer with the appropriate units. P = __ Submit μA Value Provide Feedback Request Answer Units ? Next >
